Hitachi

ZX450

Excavator

Operating Weight
93,697 lb
Max Digging Depth
238 in
Max Digging Depth
283 in
Net Power
314.0 hp
All excavators

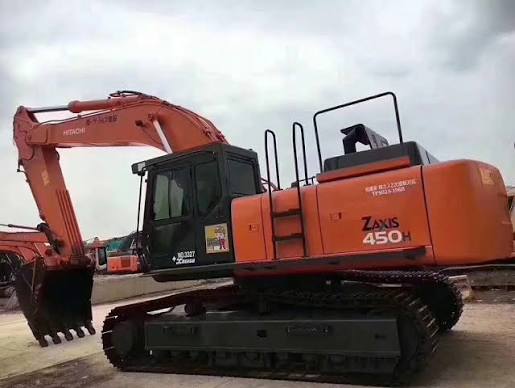

Hitachi ZX450 Excavator
1 / 5
Image 1 of 5
Image: aprentalshk.com

Specifications

73 data points

Operating Specifications

Operating Specifications specifications
Operating Weight93,697 lb
Fuel Capacity171.8 gal
Hydraulic Pump Flow Capacity95.2 gal/min
Hydraulic System Fluid Capacity134.8 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity14.6 gal
Cooling System Fluid Capacity16.2 gal
Operating Voltage12 V
Swing Drive Fluid Capacity1.8 gal

Engine

Engine specifications
Engine ModelAA-6WG1TQA
Displacement957 in³
Power Measured @1,800 rpm
Net Power314.0 hp
Aspirationturbocharged
Torque Measured @1,500 rpm
Max Torque940 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab128 in
Length of Track on Ground159 in
Tail Swing Radius138 in
Width to Outside of Tracks132 in
Removal Counterweight Clearance49 in

Undercarriage

Undercarriage specifications
Ground Pressure12 psi
Track Gauge108 in
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side47
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth238 in
Max Reach Along Ground408 in
Max Loading Height280 in
Max Vertical Wall Digging Depth190 in
Max Cutting Height419 in
Shipping Length of Unit467 in
Shipping Height of Unit128 in

Bucket

Bucket specifications
Reference Bucket Capacity2.50 yd³
Maximum Bucket Capacity3.51 yd³
Minimum Bucket Capacity1.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth283 in
Max Vertical Wall Digging Depth216 in
Max Cutting Height401 in
Max Loading Height272 in
Max Reach Along Ground441 in
Shipping Length of Unit467 in
Shipping Height of Unit128 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth311 in
Max Cutting Height432 in
Max Loading Height298 in
Max Vertical Wall Digging Depth268 in
Max Reach Along Ground468 in
Shipping Length of Unit467 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth331 in
Max Cutting Height435 in
Max Reach Along Ground485 in
Max Loading Height302 in
Max Vertical Wall Dig Depth283 in
Shipping Length of Unit467 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth365 in
Max Reach Along Ground521 in
Max Cutting Height462 in
Max Loading Height341 in
Max Vertical Wall Dig Depth339 in
Shipping Height of Unit128 in
Shipping Length of Unit467 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth408 in
Max Reach Along Ground565 in
Max Cutting Height478 in
Max Loading Height359 in
Max Vertical Wall Dig Depth339 in
Shipping Length of Unit467 in
Shipping Height of Unit128 in
