Hitachi

ZX450-3

Excavator

Operating Weight
100,751 lb
Max Digging Depth
233 in
Max Digging Depth
246 in
Net Power
314.0 hp
All excavators

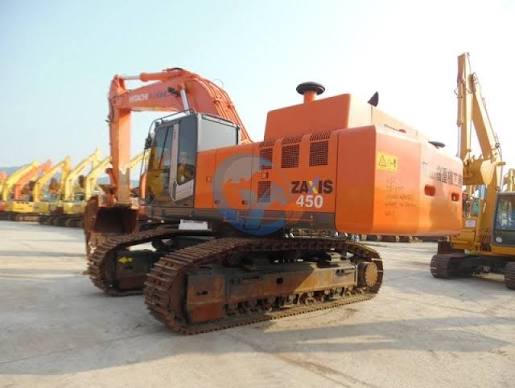

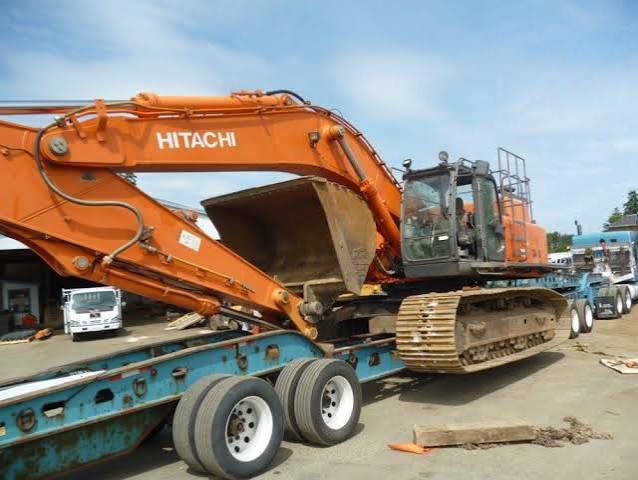

Hitachi ZX450-3 Excavator
1 / 5
Image 1 of 5
Image: aprentalshk.com

Specifications

65 data points

Operating Specifications

Operating Specifications specifications
Operating Weight100,751 lb
Fuel Capacity191.6 gal
Hydraulic Pump Flow Capacity190.3 gal/min
Hydraulic System Fluid Capacity148.0 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity15.1 gal
Cooling System Fluid Capacity14.6 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.8 gal

Engine

Engine specifications
Engine ModelAH-6WG1XYSA-01
Displacement957 in³
Power Measured @1,800 rpm
Net Power314.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque940 lb-ft

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab132 in
Length of Track on Ground159 in
Tail Swing Radius144 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance54 in

Undercarriage

Undercarriage specifications
Ground Pressure12 psi
Track Gauge114 in
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side47
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth233 in
Max Reach Along Ground407 in
Max Loading Height284 in
Max Vertical Wall Digging Depth182 in
Max Cutting Height424 in

Bucket

Bucket specifications
Reference Bucket Capacity2.50 yd³
Maximum Bucket Capacity3.30 yd³
Minimum Bucket Capacity1.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth246 in
Max Vertical Wall Digging Depth198 in
Max Cutting Height428 in
Max Loading Height289 in
Max Reach Along Ground419 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth287 in
Max Cutting Height404 in
Max Loading Height277 in
Max Vertical Wall Digging Depth207 in
Max Reach Along Ground441 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth306 in
Max Cutting Height435 in
Max Reach Along Ground467 in
Max Loading Height301 in
Max Vertical Wall Dig Depth260 in
Shipping Length of Unit469 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth326 in
Max Reach Along Ground483 in
Max Cutting Height441 in
Max Loading Height306 in
Max Vertical Wall Dig Depth276 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth359 in
Max Reach Along Ground519 in
Max Cutting Height462 in
Max Loading Height342 in
Max Vertical Wall Dig Depth332 in
