Hitachi

ZX450H

Excavator

Operating Weight
96,563 lb
Max Digging Depth
234 in
Max Digging Depth
247 in
Net Power
314.0 hp
All excavators

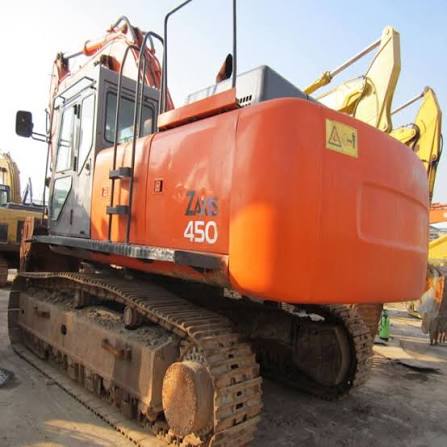

Hitachi ZX450H Excavator
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Operating Weight96,563 lb
Fuel Capacity171.8 gal
Hydraulic Pump Flow Capacity95.2 gal/min
Hydraulic System Fluid Capacity134.8 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity14.6 gal
Cooling System Fluid Capacity16.2 gal
Operating Voltage12 V
Swing Drive Fluid Capacity1.8 gal

Engine

Engine specifications
Engine ModelAA-6WG1TQA
Displacement957 in³
Power Measured @1,800 rpm
Net Power314.0 hp
Aspirationturbocharged
Torque Measured @1,500 rpm
Max Torque940 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab128 in
Length of Track on Ground159 in
Tail Swing Radius138 in
Width to Outside of Tracks132 in
Removal Counterweight Clearance49 in

Undercarriage

Undercarriage specifications
Ground Pressure12 psi
Track Gauge108 in
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side47
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth234 in
Max Reach Along Ground403 in
Max Loading Height283 in
Max Vertical Wall Digging Depth166 in
Max Cutting Height415 in
Shipping Length of Unit467 in
Shipping Height of Unit128 in

Bucket

Bucket specifications
Reference Bucket Capacity2.50 yd³
Maximum Bucket Capacity3.51 yd³
Minimum Bucket Capacity1.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth247 in
Max Vertical Wall Digging Depth181 in
Max Cutting Height420 in
Max Loading Height288 in
Max Reach Along Ground415 in
Shipping Length of Unit467 in
Shipping Height of Unit128 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth289 in
Max Cutting Height396 in
Max Loading Height275 in
Max Vertical Wall Digging Depth165 in
Max Reach Along Ground438 in
Shipping Length of Unit467 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth311 in
Max Cutting Height432 in
Max Reach Along Ground468 in
Max Loading Height298 in
Max Vertical Wall Dig Depth268 in
Shipping Length of Unit467 in
