Hitachi

ZX450HLC

Excavator

Operating Weight
100,972 lb
Max Digging Depth
229 in
Max Digging Depth
246 in
Net Power
314.0 hp
All excavators

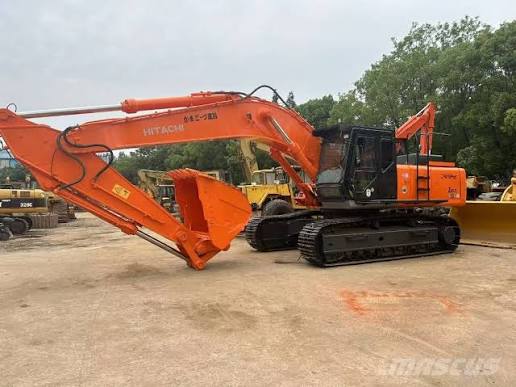

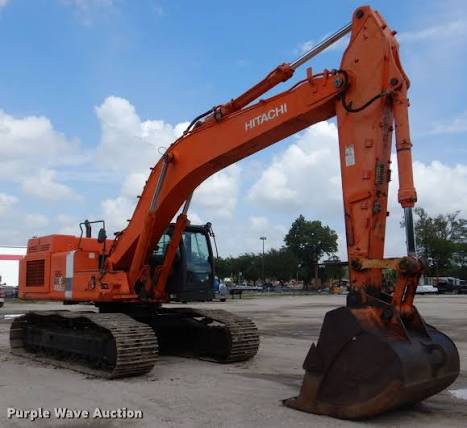

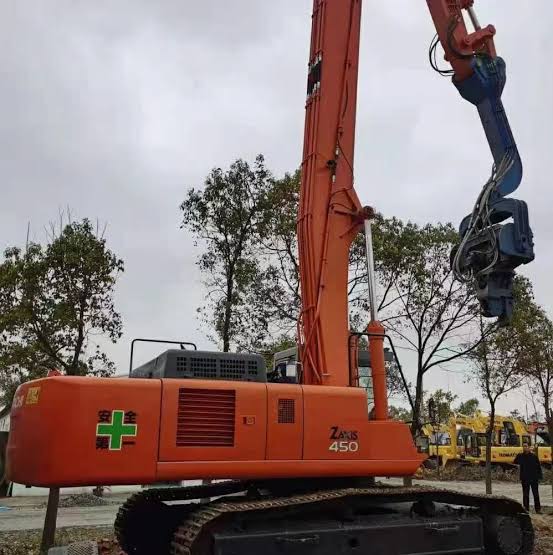

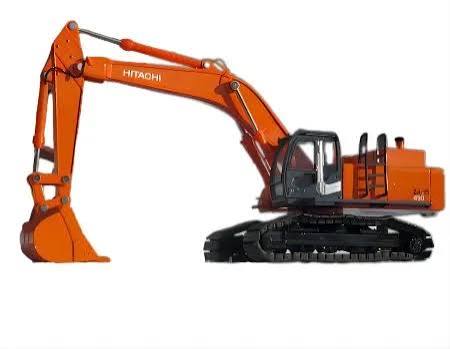

Hitachi ZX450HLC Excavator
1 / 5
Image 1 of 5
Image: aprentalshk.com

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Operating Weight100,972 lb
Fuel Capacity171.8 gal
Hydraulic Pump Flow Capacity95.2 gal/min
Hydraulic System Fluid Capacity134.8 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity14.6 gal
Cooling System Fluid Capacity16.2 gal
Operating Voltage12 V
Swing Drive Fluid Capacity1.8 gal

Engine

Engine specifications
Engine ModelAA-6WG1TQA
Displacement957 in³
Power Measured @1,800 rpm
Net Power314.0 hp
Aspirationturbocharged
Torque Measured @1,500 rpm
Max Torque940 lb-ft

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab133 in
Length of Track on Ground176 in
Tail Swing Radius138 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance54 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge114 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side53
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth229 in
Max Reach Along Ground402 in
Max Loading Height288 in
Max Vertical Wall Digging Depth168 in
Max Cutting Height420 in
Shipping Length of Unit466 in
Shipping Height of Unit133 in

Bucket

Bucket specifications
Reference Bucket Capacity2.50 yd³
Maximum Bucket Capacity3.51 yd³
Minimum Bucket Capacity1.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth246 in
Max Vertical Wall Digging Depth196 in
Max Cutting Height430 in
Max Loading Height289 in
Max Reach Along Ground418 in
Shipping Length of Unit466 in
Shipping Height of Unit133 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth288 in
Max Cutting Height404 in
Max Loading Height277 in
Max Vertical Wall Digging Depth189 in
Max Reach Along Ground442 in
Shipping Length of Unit466 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth300 in
Max Cutting Height437 in
Max Reach Along Ground466 in
Max Loading Height302 in
Max Vertical Wall Dig Depth260 in
Shipping Length of Unit466 in
