Hitachi

ZX470H-3

Excavator

Operating Weight
103,838 lb
Max Digging Depth
284 in
Max Digging Depth
306 in
Net Power
348.7 hp
All excavators

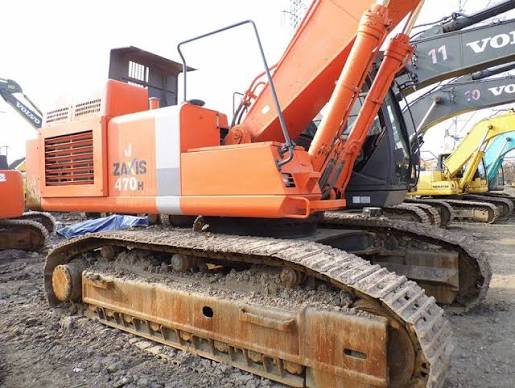

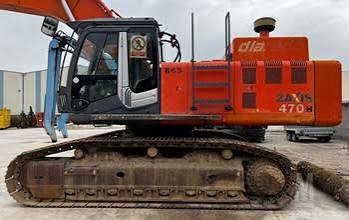

Hitachi ZX470H-3 Excavator
1 / 5
Image 1 of 5
Image: tradeindia.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight103,838 lb
Fuel Capacity191.6 gal
Hydraulic Pump Flow Capacity190.3 gal/min
Hydraulic System Fluid Capacity148.0 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity15.1 gal
Cooling System Fluid Capacity14.6 gal
Swing Drive Fluid Capacity1.8 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAH-6WG1XYSA-01
Displacement957 in³
Power Measured @1,800 rpm
Net Power348.7 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque1,165 lb-ft

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab137 in
Length of Track on Ground159 in
Tail Swing Radius144 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance54 in

Undercarriage

Undercarriage specifications
Ground Pressure13 psi
Track Gauge114 in
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side47
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth284 in
Max Reach Along Ground437 in
Max Loading Height280 in
Max Vertical Wall Digging Depth169 in
Max Cutting Height401 in

Bucket

Bucket specifications
Reference Bucket Capacity2.50 yd³
Maximum Bucket Capacity2.80 yd³
Minimum Bucket Capacity2.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth306 in
Max Vertical Wall Digging Depth280 in
Max Cutting Height435 in
Max Loading Height301 in
Max Reach Along Ground467 in
Shipping Length of Unit469 in
Shipping Height of Unit138 in
