Hitachi

ZX470LC-6

Excavator

Operating Weight
110,804 lb
Max Digging Depth
287 in
Max Digging Depth
246 in
Net Power
362.0 hp
All excavators

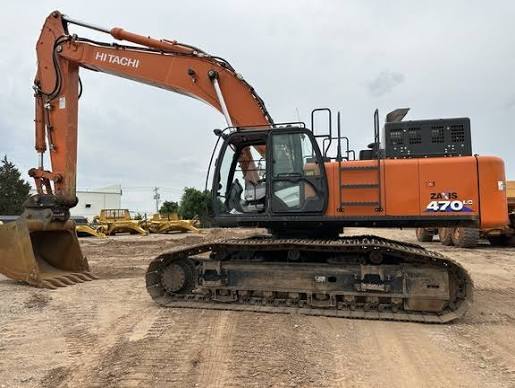

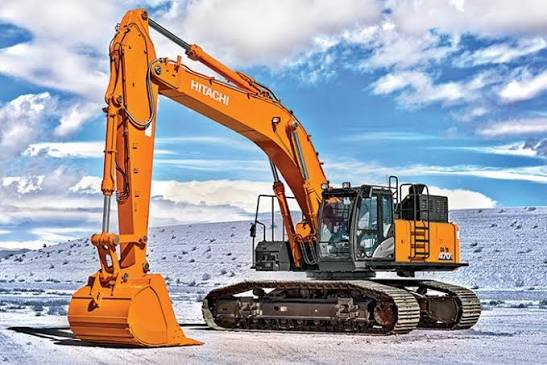

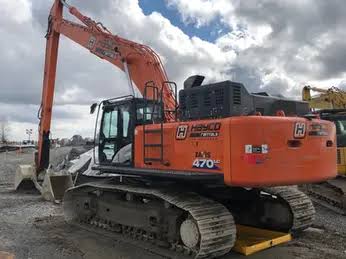

Hitachi ZX470LC-6 Excavator
1 / 5
Image 1 of 5
Image: makana.com

Specifications

99 data points

Operating Specifications

Operating Specifications specifications
Operating Weight110,804 lb

Engine

Engine specifications
Engine ModelIsuzu 6UZ1
Displacement601 in³
Power Measured @2,000 rpm
Net Power362.0 hp
AspirationTurbocharged air-to-air charge-air cooler
Engine MakeIsuzu
Cooling systemCool-on-demand hydraulic-driven suction-type fan with remote-mounted drive
Emissions levelEPA Final Tier 4 / EU Stage IV
Off-Level Capacity70.0 %

Hydraulic System

Hydraulic System specifications
Main pump - Maximum flow105.7 gal
Hydraulic System TypeOpen center load sensing
Implement - Operating Pressure4,627 psi
Travel - Operating Pressure5,120 psi
ControlsPilot levers short-stroke low-effort hydraulic pilot controls with shutoff lever
Main pump type2 variable-displacement pumps

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab132 in
Length of Track on Ground476 in
Tail Swing Radius145 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance54 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Number of Shoes per Side53
Number of Carrier Rollers per Side3
Drawbar Pull73,937 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank178.4 gal
Hydraulic system134.8 gal
Cooling system16.5 gal
Hydraulic Tank81.9 gal
Engine oil with filter10.9 gal
Diesel exhaust fluid (DEF) tank25.1 gal
Swing drive1.8 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth287 in
Max Reach Along Ground441 in
Max Loading Height277 in
Max Vertical Wall Digging Depth207 in
Max Cutting Height404 in
Shipping Length of Unit476 in
Shipping Height of Unit143 in
Bucket Digging Force - SAE57,102 lb
Bucket Digging Force - ISO64,071 lb
Arm Digging Force - ISO58,226 lb
Arm Digging Force - SAE56,652 lb

Bucket

Bucket specifications
Maximum Bucket Capacity4.20 yd³
Minimum Bucket Capacity1.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth246 in
Max Vertical Wall Digging Depth198 in
Max Cutting Height428 in
Max Loading Height289 in
Max Reach Along Ground419 in
Shipping Length of Unit474 in
Shipping Height of Unit138 in
Bucket Digging Force - SAE57,776 lb
Bucket Digging Force - ISO64,071 lb
Arm Digging Force - SAE55,978 lb
Arm Digging Force - ISO57,551 lb

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth306 in
Max Cutting Height435 in
Max Loading Height301 in
Max Vertical Wall Digging Depth260 in
Max Reach Along Ground467 in
Shipping Length of Unit474 in
Bucket Digging Force - SAE57,551 lb
Bucket Digging Force - ISO64,295 lb
Arm Digging Force - SAE48,334 lb

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth326 in
Max Cutting Height441 in
Max Reach Along Ground483 in
Max Loading Height306 in
Max Vertical Wall Dig Depth276 in
Shipping Length of Unit473 in

Electrical System

Electrical System specifications
Batteries2 x 12 V volts
Battery capacity—
Alternator rating100 amp
Work Lights5 halogen

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth359 in
Max Reach Along Ground519 in
Max Cutting Height462 in
Max Loading Height342 in
Max Vertical Wall Dig Depth332 in
Shipping Height of Unit148 in
Shipping Length of Unit446 in
Bucket Digging Force - ISO53,505 lb
Bucket Digging Force - SAE47,884 lb
Arm Digging Force - ISO39,791 lb
Arm Digging Force - SAE39,342 lb

Cylinders

Cylinders specifications
Bore (Boom)7 in
Bore (Bucket)7 in
Stroke (Bucket)52 in
Bore (Arm)8 in
Stroke (Arm)76 in
Stroke (Boom)63 in
Rod Diameter (Arm)5 in
Rod Diameter (Boom)5 in
Rod Diameter (Bucket)5 in
