Hitachi

ZX500LC-3

Excavator

Operating Weight
109,129 lb
Max Digging Depth
229 in
Max Digging Depth
244 in
Net Power
349.0 hp
All excavators

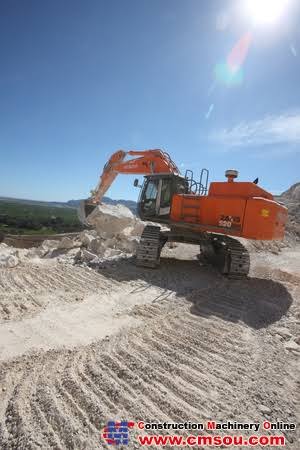

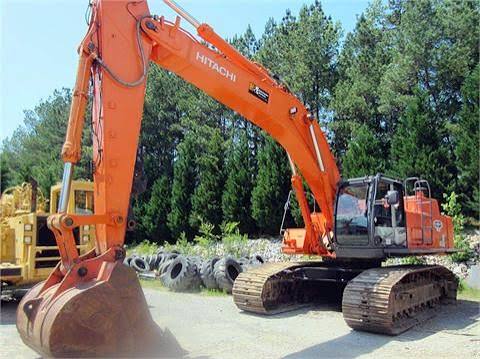

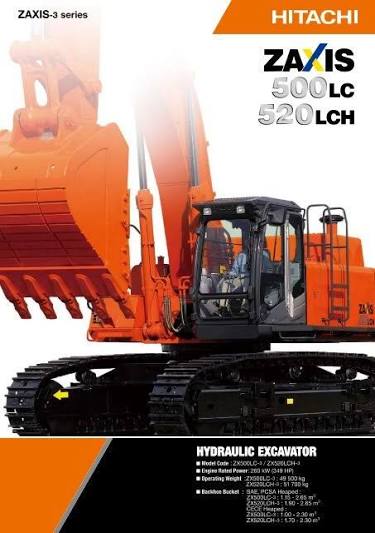

Hitachi ZX500LC-3 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

63 data points

Operating Specifications

Operating Specifications specifications
Operating Weight109,129 lb
Fuel Capacity191.6 gal
Hydraulic Pump Flow Capacity190.3 gal/min
Hydraulic System Fluid Capacity148.0 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity15.1 gal
Cooling System Fluid Capacity14.6 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.8 gal

Engine

Engine specifications
Engine ModelAH-6WG1XYSA-01
Displacement957 in³
Power Measured @1,800 rpm
Net Power349.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque1,165 lb-ft

Dimensions

Dimensions specifications
Ground Clearance32 in
Height - Top of Cab134 in
Length of Track on Ground168 in
Tail Swing Radius144 in
Width to Outside of Tracks139 in
Removal Counterweight Clearance57 in

Undercarriage

Undercarriage specifications
Ground Pressure13 psi
Track Gauge115 in
Number of Track Rollers per Side8
Max Travel Speed2.5 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth229 in
Max Reach Along Ground406 in
Max Loading Height288 in
Max Vertical Wall Digging Depth180 in
Max Cutting Height426 in

Bucket

Bucket specifications
Reference Bucket Capacity2.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth244 in
Max Vertical Wall Digging Depth196 in
Max Cutting Height432 in
Max Loading Height293 in
Max Reach Along Ground418 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth284 in
Max Cutting Height407 in
Max Loading Height280 in
Max Vertical Wall Digging Depth205 in
Max Reach Along Ground439 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth304 in
Max Cutting Height439 in
Max Reach Along Ground466 in
Max Loading Height305 in
Max Vertical Wall Dig Depth257 in
Shipping Length of Unit469 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth324 in
Max Reach Along Ground483 in
Max Cutting Height443 in
Max Loading Height309 in
Max Vertical Wall Dig Depth272 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth401 in
Max Reach Along Ground564 in
Max Cutting Height485 in
Max Loading Height366 in
Max Vertical Wall Dig Depth369 in
