Hyundai

ROBEX 130LCM-3 High Chassis

Excavator

Operating Weight
36,156 lb
Max Digging Depth
187 in
Max Digging Depth
194 in
Net Power
102.0 hp
All excavators

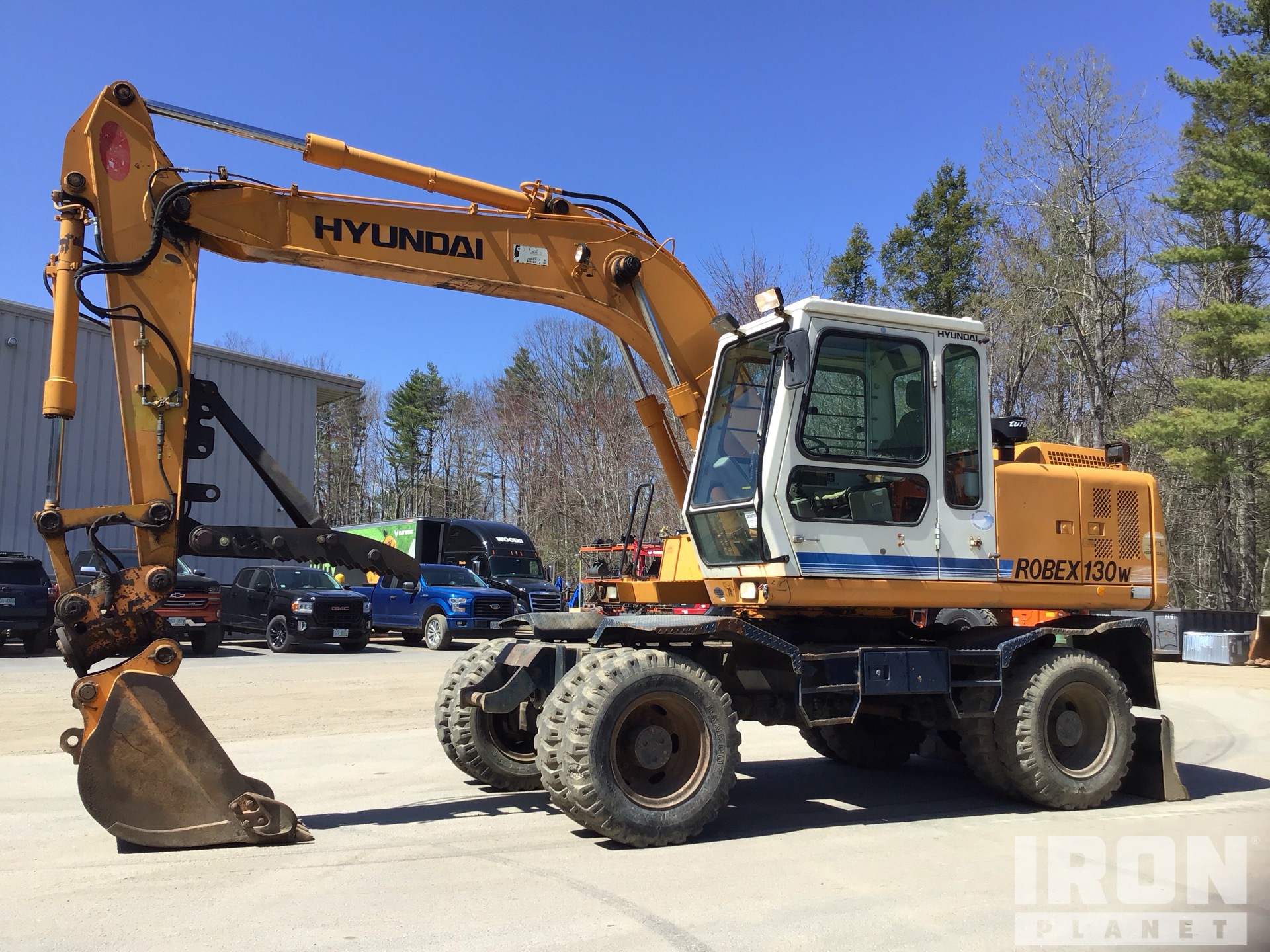

Hyundai ROBEX 130LCM-3 High Chassis Excavator
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

66 data points

Operating Specifications

Operating Specifications specifications
Operating Weight36,156 lb
Fuel Capacity58.2 gal
Hydraulic Pump Flow Capacity68.7 gal/min
Hydraulic System Fluid Capacity63.5 gal
Engine Oil Capacity3.0 gal
Cooling System Fluid Capacity4.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.6 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelB3.9 - C
Displacement14,585 in³
Power Measured @2,200 rpm
Gross Power110.0 hp
Net Power102.0 hp
Torque Measured @1,500 rpm
Max Torque332 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab125 in
Length of Track on Ground152 in
Tail Swing Radius94 in
Width to Outside of Tracks115 in
Removal Counterweight Clearance48 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge80 in
Number of Track Rollers per Side7
Max Travel Speed2.6 mph
Shoe Size28 in
Number of Shoes per Side47
Number of Carrier Rollers per Side2
Drawbar Pull15,500 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth187 in
Max Reach Along Ground320 in
Max Loading Height231 in
Max Vertical Wall Digging Depth167 in
Max Cutting Height328 in
Shipping Length of Unit302 in
Shipping Height of Unit125 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth194 in
Max Vertical Wall Digging Depth172 in
Max Cutting Height331 in
Max Loading Height235 in
Max Reach Along Ground305 in
Shipping Length of Unit305 in
Shipping Height of Unit125 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth212 in
Max Cutting Height346 in
Max Loading Height250 in
Max Vertical Wall Digging Depth192 in
Max Reach Along Ground322 in
Shipping Length of Unit301 in
Shipping Height of Unit125 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth221 in
Max Cutting Height348 in
Max Reach Along Ground330 in
Max Loading Height252 in
Max Vertical Wall Dig Depth200 in
Shipping Length of Unit305 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth230 in
Max Reach Along Ground340 in
Max Cutting Height354 in
Max Loading Height258 in
Max Vertical Wall Dig Depth212 in
Shipping Height of Unit125 in
Shipping Length of Unit305 in
