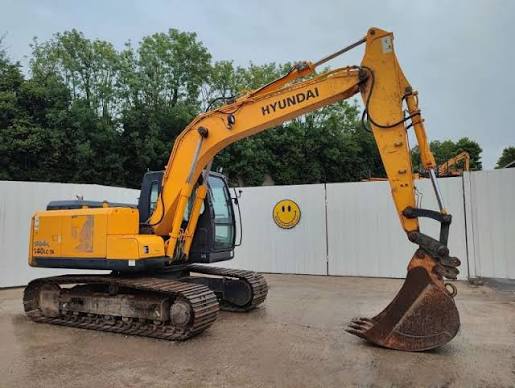

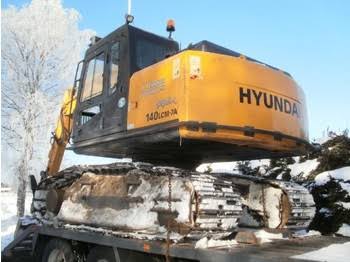

Hyundai
ROBEX 140LCM-7A
- Operating Weight
- 37,214 lb
- Max Digging Depth
- 186 in
- Max Digging Depth
- 193 in
- Net Power
- 105.0 hp
1 / 5
Image 1 of 5
Specifications
62 data points
Operating Specifications
| Operating Weight | 37,214 lb |
|---|---|
| Fuel Capacity | 71.4 gal |
| Hydraulic Pump Flow Capacity | 68.7 gal/min |
| Hydraulic System Fluid Capacity | 55.5 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 4.9 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.7 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | D04FD-TAA |
|---|---|
| Displacement | 4,249 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 119.0 hp |
| Net Power | 105.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,700 rpm |
| Max Torque | 328 lb-ft |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Height - Top of Cab | 122 in |
| Length of Track on Ground | 120 in |
| Tail Swing Radius | 91 in |
| Width to Outside of Tracks | 113 in |
| Removal Counterweight Clearance | 48 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 80 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 13,300 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 186 in |
|---|---|
| Max Reach Along Ground | 298 in |
| Max Loading Height | 233 in |
| Max Vertical Wall Digging Depth | 166 in |
| Max Cutting Height | 329 in |
| Shipping Length of Unit | 306 in |
| Shipping Height of Unit | 108 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 193 in |
|---|---|
| Max Vertical Wall Digging Depth | 170 in |
| Max Cutting Height | 322 in |
| Max Loading Height | 236 in |
| Max Reach Along Ground | 305 in |
| Shipping Length of Unit | 308 in |
| Shipping Height of Unit | 113 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 209 in |
|---|---|
| Max Cutting Height | 344 in |
| Max Loading Height | 248 in |
| Max Vertical Wall Digging Depth | 191 in |
| Max Reach Along Ground | 320 in |
| Shipping Length of Unit | 306 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 229 in |
|---|---|
| Max Cutting Height | 355 in |
| Max Reach Along Ground | 340 in |
| Max Loading Height | 259 in |
| Max Vertical Wall Dig Depth | 212 in |
| Shipping Length of Unit | 308 in |
