Hyundai
New Holland
E200SR
Excavator
44 specifications
1 / 5

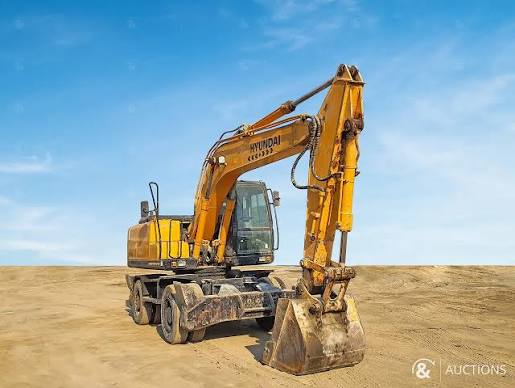

Image 1 of 5
Specifications
66 data points
Operating Specifications
| Operating Weight | 35,715 lb |
|---|---|
| Fuel Capacity | 68.7 gal |
| Hydraulic Pump Flow Capacity | 88.8 gal/min |
| Hydraulic System Fluid Capacity | 63.5 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 4.4 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 A |
| Hydraulic Pump Type | two variable displacement piston pumps |
| Tire Size | 10-20-14PR |
| Front Diff Fluid Capacity | 3.7 gal |
| Rear Diff Fluid Capacity | 3.7 gal |
Engine
| Engine Model | S6S-DT |
|---|---|
| Displacement | 305 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 126.0 hp |
| Net Power | 116.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
| Net Torque | 307 lb-ft |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 125 in |
| Wheelbase | 103 in |
| Overall Width | 8 in |
| Tail Swing Radius | 98 in |
| Upper Structure Clearance | 50 in |
| Overall Width - Outriggers Down | 145 in |
Transmission
| Max Travel Speed | 18.7 mph |
|---|---|
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
| Drawbar Pull | 24,300 lb |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.40 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 214 in |
|---|---|
| Max Cutting Height | 354 in |
| Max Reach Along Ground | 335 in |
| Max Loading Height | 251 in |
| Shipping Length of Unit | 340 in |
| Shipping Height of Unit | 120 in |
| Max Vertical Wall Dig Depth | 193 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 229 in |
|---|---|
| Max Cutting Height | 359 in |
| Max Reach Along Ground | 348 in |
| Max Loading Height | 256 in |
| Shipping Height of Unit | 118 in |
| Shipping Length of Unit | 344 in |
| Max Vertical Wall Dig Depth | 206 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 250 in |
|---|---|
| Max Cutting Height | 364 in |
| Max Reach Along Ground | 365 in |
| Max Loading Height | 261 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 346 in |
| Max Vertical Wall Dig Depth | 219 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 206 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Reach Along Ground | 330 in |
| Max Loading Height | 274 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 340 in |
| Max Vertical Wall Dig Depth | 175 in |
