Hyundai

ROBEX 250LC-3 High Chassis

Excavator

Operating Weight
63,273 lb
Max Digging Depth
224 in
Max Digging Depth
240 in
Net Power
161.0 hp
All excavators

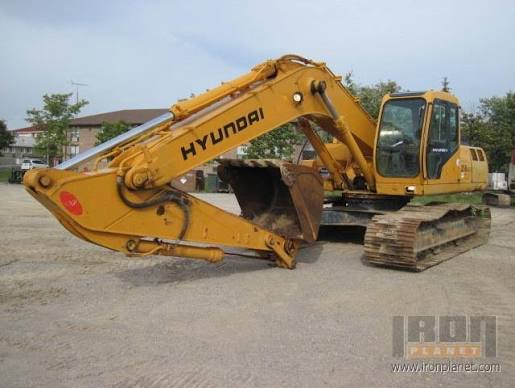

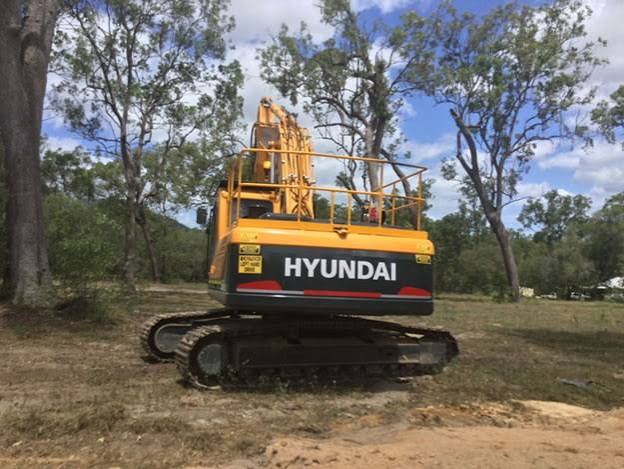

Hyundai ROBEX 250LC-3 High Chassis Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

73 data points

Operating Specifications

Operating Specifications specifications
Operating Weight63,273 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity60.8 gal/min
Hydraulic System Fluid Capacity89.9 gal
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity9.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.0 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelB5.9-C
Displacement359 in³
Power Measured @2,200 rpm
Gross Power174.0 hp
Net Power161.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque590 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance31 in
Height - Top of Cab117 in
Length of Track on Ground196 in
Tail Swing Radius117 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance60 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge110 in
Number of Track Rollers per Side10
Max Travel Speed2.7 mph
Shoe Size28 in
Number of Shoes per Side51
Number of Carrier Rollers per Side2
Drawbar Pull56,220 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth224 in
Max Reach Along Ground369 in
Max Loading Height270 in
Max Vertical Wall Digging Depth211 in
Max Cutting Height393 in
Shipping Length of Unit400 in
Shipping Height of Unit144 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth240 in
Max Vertical Wall Digging Depth217 in
Max Cutting Height40 in
Max Loading Height272 in
Max Reach Along Ground381 in
Shipping Length of Unit396 in
Shipping Height of Unit141 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth261 in
Max Cutting Height394 in
Max Loading Height275 in
Max Vertical Wall Digging Depth226 in
Max Reach Along Ground398 in
Shipping Length of Unit390 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth283 in
Max Cutting Height408 in
Max Reach Along Ground421 in
Max Loading Height287 in
Max Vertical Wall Dig Depth253 in
Shipping Length of Unit395 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth206 in
Max Reach Along Ground344 in
Max Cutting Height374 in
Max Loading Height251 in
Max Vertical Wall Dig Depth190 in
Shipping Height of Unit145 in
Shipping Length of Unit377 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth221 in
Max Reach Along Ground357 in
Max Cutting Height376 in
Max Loading Height254 in
Max Vertical Wall Dig Depth197 in
Shipping Length of Unit373 in
Shipping Height of Unit138 in
