Hyundai

ROBEX 290LC-7 High Chassis

Excavator

Operating Weight
70,860 lb
Max Digging Depth
243 in
Max Digging Depth
250 in
Net Power
197.0 hp
All excavators

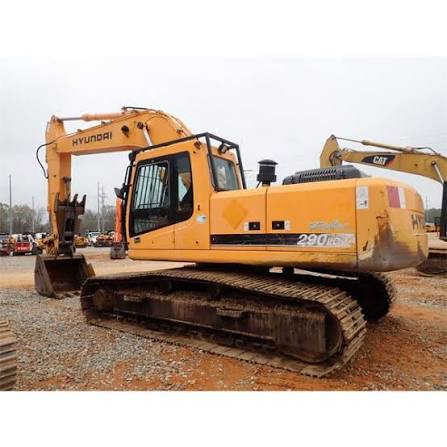

Hyundai ROBEX 290LC-7 High Chassis Excavator
1 / 5
Image 1 of 5
Image: exkavator.ru

Specifications

62 data points

Operating Specifications

Operating Specifications specifications
Operating Weight70,860 lb
Fuel Capacity126.9 gal
Hydraulic Pump Flow Capacity137.4 gal/min
Hydraulic System Fluid Capacity84.6 gal
Hydraulic System Relief Valve Pressure4,690 psi
Engine Oil Capacity6.3 gal
Cooling System Fluid Capacity13.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.0 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelQSB5.9-C
Displacement359 in³
Power Measured @1,900 rpm
Gross Power213.0 hp
Net Power197.0 hp
Aspirationturbocharged
Torque Measured @1,500 rpm
Max Torque685 lb-ft

Dimensions

Dimensions specifications
Ground Clearance31 in
Height - Top of Cab133 in
Length of Track on Ground159 in
Tail Swing Radius126 in
Width to Outside of Tracks137 in
Removal Counterweight Clearance60 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge114 in
Number of Track Rollers per Side9
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Shoes per Side48
Number of Carrier Rollers per Side2
Drawbar Pull61,373 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth243 in
Max Reach Along Ground384 in
Max Loading Height285 in
Max Vertical Wall Digging Depth226 in
Max Cutting Height409 in
Shipping Length of Unit421 in
Shipping Height of Unit148 in

Bucket

Bucket specifications
Reference Bucket Capacity1.70 yd³
Maximum Bucket Capacity2.50 yd³
Minimum Bucket Capacity1.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth250 in
Max Vertical Wall Digging Depth220 in
Max Cutting Height403 in
Max Loading Height283 in
Max Reach Along Ground395 in
Shipping Length of Unit419 in
Shipping Height of Unit142 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth280 in
Max Cutting Height411 in
Max Loading Height292 in
Max Vertical Wall Digging Depth240 in
Max Reach Along Ground415 in
Shipping Length of Unit411 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth307 in
Max Cutting Height420 in
Max Reach Along Ground441 in
Max Loading Height300 in
Max Vertical Wall Dig Depth268 in
Shipping Length of Unit415 in
