Hyundai

ROBEX 290LC-7 LR

Excavator

Operating Weight
72,444 lb
Max Digging Depth
584 in
Net Power
213.0 hp
All excavators

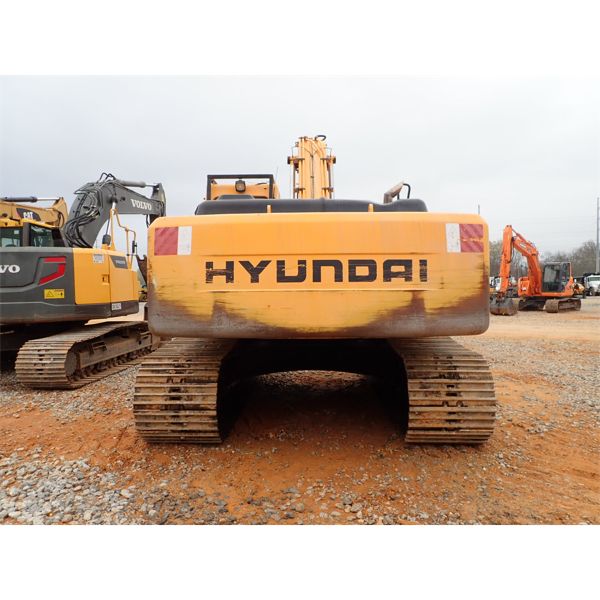

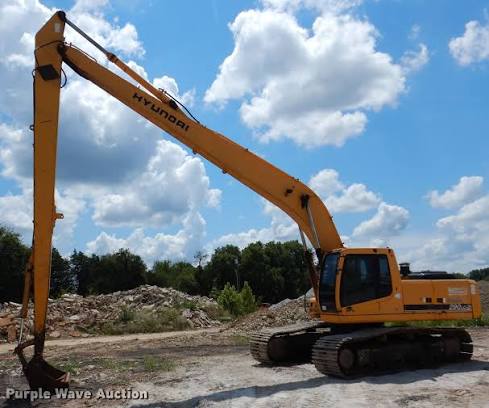

Hyundai ROBEX 290LC-7 LR Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight72,444 lb
Hydraulic System Relief Valve Pressure4,690 psi

Engine

Engine specifications
Engine ModelQSB5.9-C
Net Power213.0 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab119 in
Length of Track on Ground159 in
Tail Swing Radius126 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance48 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge103 in
Max Travel Speed3.3 mph
Shoe Size32 in
Drawbar Pull60,186 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth584 in
Max Reach Along Ground725 in
Max Loading Height480 in
Max Vertical Wall Digging Depth474 in
Max Cutting Height571 in
Shipping Length of Unit574 in
Shipping Height of Unit141 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
Maximum Bucket Capacity0.71 yd³
Minimum Bucket Capacity0.30 yd³
