Hyundai

ROBEX 300LC-9A

Excavator

Operating Weight
65,698 lb
Max Digging Depth
254 in
Max Digging Depth
270 in
Net Power
225.0 hp
All excavators

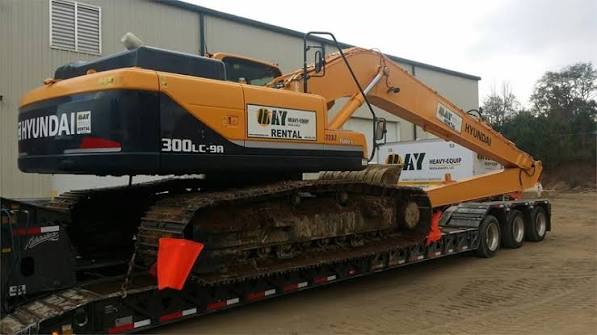

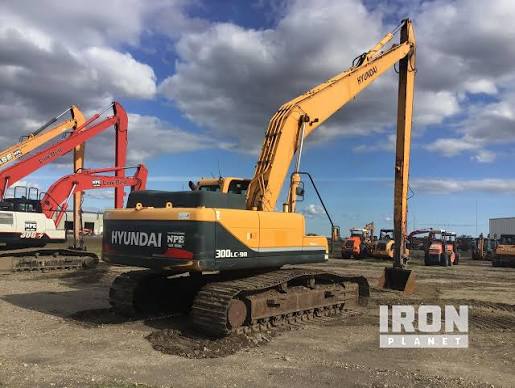

Hyundai ROBEX 300LC-9A Excavator
1 / 5
Image 1 of 5
Image: hyundai-ce.com

Specifications

65 data points

Operating Specifications

Operating Specifications specifications
Operating Weight65,698 lb
Fuel Capacity132.1 gal
Hydraulic Pump Flow Capacity70.3 gal/min
Hydraulic System Fluid Capacity87.2 gal
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity10.6 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelQSB6.7
Displacement408 in³
Power Measured @1,900 rpm
Net Power225.0 hp
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque700 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab119 in
Length of Track on Ground196 in
Tail Swing Radius126 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance48 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge103 in
Number of Track Rollers per Side9
Max Travel Speed3.4 mph
Shoe Size24 in
Number of Shoes per Side48
Number of Carrier Rollers per Side2
Drawbar Pull60,200 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth254 in
Max Reach Along Ground388 in
Max Loading Height274 in
Max Vertical Wall Digging Depth236 in
Max Cutting Height397 in
Shipping Length of Unit422 in
Shipping Height of Unit142 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth270 in
Max Vertical Wall Digging Depth230 in
Max Cutting Height398 in
Max Loading Height277 in
Max Reach Along Ground397 in
Shipping Length of Unit420 in
Shipping Height of Unit137 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth292 in
Max Cutting Height401 in
Max Loading Height281 in
Max Vertical Wall Digging Depth252 in
Max Reach Along Ground419 in
Shipping Length of Unit417 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth319 in
Max Cutting Height408 in
Max Reach Along Ground443 in
Max Loading Height288 in
Max Vertical Wall Dig Depth280 in
Shipping Length of Unit419 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth584 in
Max Reach Along Ground725 in
Max Cutting Height571 in
Max Loading Height480 in
Max Vertical Wall Dig Depth474 in
Shipping Height of Unit141 in
Shipping Length of Unit574 in
