Ingersoll Rand
Case
21D
Wheel Loader
43 specifications
1 / 5

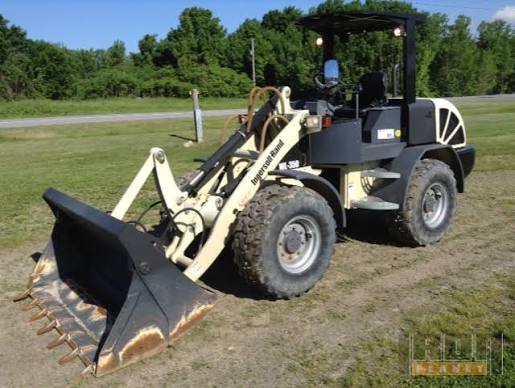

Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 13,228 lb |
|---|---|
| Fuel Capacity | 29.1 gal |
| Tire Size | 405/70 R20 |
| Hydraulic System Fluid Capacity | 23.3 gal |
| Operating Voltage | 12 V |
| Turning Radius | 85 in |
| Rear Axle Oscillation | 12 ° |
| Static Tipping Load - Bucket | 10,483 lb |
Engine
| Engine Model | diesel engine |
|---|---|
| Displacement | 189 in³ |
| Net Power | 73.0 hp |
Hydraulic System
| Pump Flow Capacity | 19.1 gal/min |
|---|---|
| Relief Valve Setting | 3,625 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 109 in |
| Wheelbase | 88 in |
| Width Over Tires | 77 in |
| Hinge Pin - Max Height | 133 in |
| Dump Clearance at Max Lift | 104 in |
| Length w/ Bucket on Ground | 210 in |
| Reach at Max Height and Dump | 28 in |
| Max Lift Height | 127 in |
| Length with out Forks on Ground | 230 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | 2 speed ranges |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - struck | 1.50 yd³ |
|---|---|
| Breakout Force | 12,724 lb |
