JCB

416S

Wheel Loader

Operating Weight
22,267 lb
Bucket Capacity - heaped
1.90 yd³
Net Power
142.0 hp
All wheel loaders

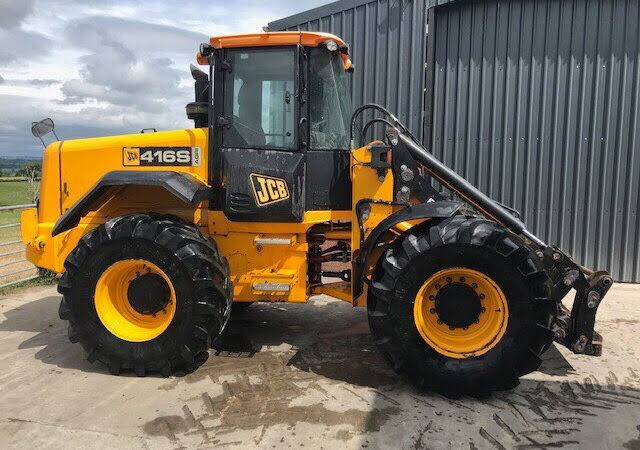

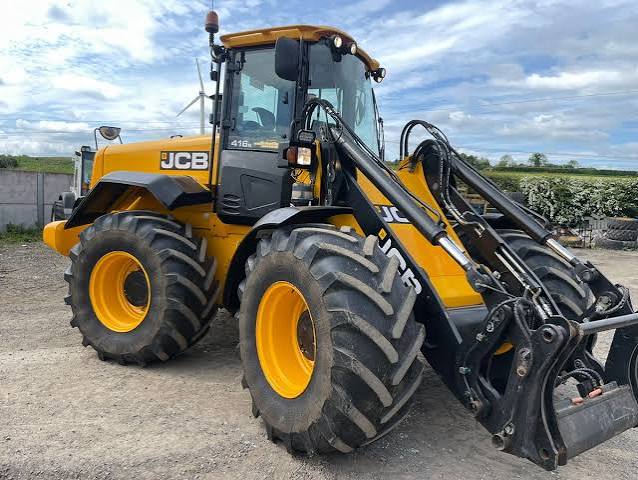

JCB 416S Wheel Loader
1 / 5
Image 1 of 5
Image: machineryline.co.ug

Specifications

52 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,267 lb
Fuel Capacity37.0 gal
Hydraulic System Fluid Capacity34.4 gal
Static Tipping Weight14,376 lb
Operating Voltage24 V
Turning Radius214 in
Engine Oil Fluid Capacity3.7 gal
Rear Axle Oscillation25 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity6.1 gal
Rear Axle/Diff Fluid Capacity6.1 gal
Cooling System Fluid Capacity5.7 gal
Transmission Fluid Capacity7.3 gal
Engine Oil Capacity3.7 gal
Static Tipping Load - Bucket14,376 lb
Front Diff Fluid Capacity6.1 gal
Rear Diff Fluid Capacity6.1 gal
Static Tipping Load - Forks10,516 lb

Engine

Engine specifications
Engine ModelBTAA5.9C
Displacement360 in³
Power Measured @2,200 rpm
Net Power142.0 hp
Number of Cylinders6
Torque Measured @1,600 rpm
Max Torque455 lb-ft

Hydraulic System

Hydraulic System specifications
Raise Time4.6 s
Lower Time3.0 s
Dump Time1.4 s
Relief Valve Setting3,335 psi
Pump Typevariable displacement piston pump

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase110 in
Width Over Tires97 in
Reach at Max Lift and Dump42 in
Length with Bucket on Ground251 in
Hinge Pin - Max Height143 in
Reach at Max Height and Dump42 in
Length w/ Bucket on Ground251 in
Dump Clearance at Max Lift102 in
Max Lift Height135 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward23.7 mph
Max Speed - Reverse16.7 mph
Transmission Typesmooth shift powershift
Number of Forward Gears6
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped1.90 yd³
Bucket Capacity - struck1.60 yd³
Dump Clearance at Max Raise102 in
Breakout Force22,571 lb
Bucket Width95 in
