JCB
Takeuchi
TB007

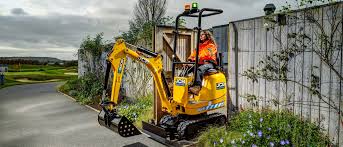

Mini Excavator
33 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 2,447 lb |
|---|---|
| Fuel Capacity | 3.1 gal |
| Hydraulic Pump Flow Capacity | 4.3 gal/min |
| Hydraulic System Fluid Capacity | 5.6 gal |
| Engine Oil Capacity | 0.8 gal |
Engine
| Engine Model | 403D-07 |
|---|---|
| Displacement | 46,500 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 12.1 hp |
| Alternator | 15 A |
| Cooling system | Water cooled |
Hydraulic System
| Auxiliary hydraulic flow | 6.0 gal/min |
|---|---|
| Pump Type | 2 section gear |
| Excavator/track main relief | 2,466 psi |
| Nominal output | 29.7 gal/min |
| Slew main relief | — |
Dimensions
| Overall Length | 106 in |
|---|---|
| Tail Swing Radius | 32 in |
| Width Over Tracks | 28 in |
| Undercarriage Overall Length | 47 in |
Undercarriage
| Number of Track Rollers per Side | 3 |
|---|---|
| Drawbar Pull | 1,742 lb |
| Tractive Effort | 55 lb |
| Track tension | Grease |
Boom/Stick Excavator Option 1
| Max Reach Along Ground | 124 in |
|---|---|
| Max.Dumping Height | 78 in |
| Max Digging Height | 113 in |
| Maximum digging depth - dozer up | 67 in |
| Maximum vertical wallcut depth | 67 in |
Boom
| Boom swing left | 70 ° |
|---|---|
| Boom swing right | 70 ° |
| Bucket rotation | 191 ° |
| Bucket tearout | 2,091 lb |
| Dipper tearout | 1,034 lb |
Performance
| Gradeability | 130.0 % |
|---|
