JCB

8015

Mini Excavator

Operating Weight
3,505 lb
Max Digging Depth
80 in
Gross Power
19.7 hp
Net Power
19.0 hp
All mini excavators

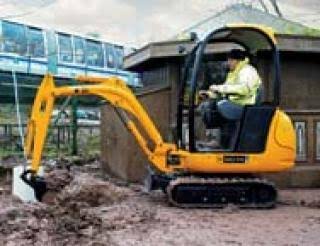

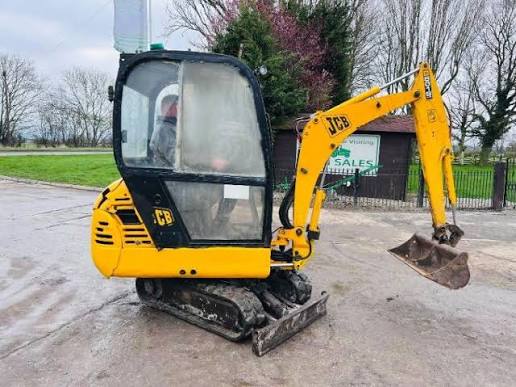

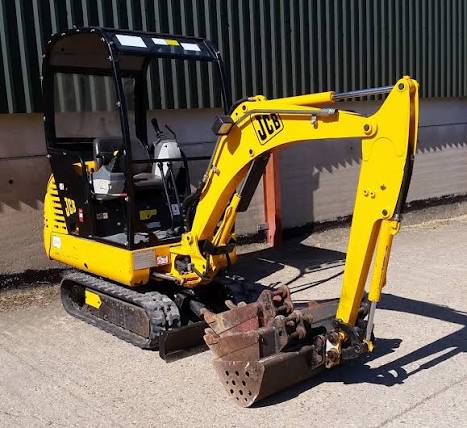

JCB 8015 Mini Excavator
1 / 5
Image 1 of 5
Image: machineryline.ie

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,505 lb
Fuel Capacity6.2 gal
Hydraulic Pump Flow Capacity7.1 gal/min
Hydraulic System Fluid Capacity7.4 gal
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity1.1 gal
Cooling System Fluid Capacity1.4 gal

Engine

Engine specifications
Engine Model403C-11
Displacement69 in³
Gross Power19.7 hp
Net Power19.0 hp
Max Torque46 lb-ft

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab91 in
Length of Track on Ground44 in
Tail Swing Radius41 in
Width to Outside of Tracks39 in
Removal Counterweight Clearance16 in

Undercarriage

Undercarriage specifications
Track Gauge30 in
Max Travel Speed2.4 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth80 in
Max Reach Along Ground149 in
Max Vertical Wall Digging Depth66 in
Max Loading Height100 in
Shipping Length of Unit132 in
Max Cutting Height134 in
Shipping Height of Unit91 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth84 in
Max Cutting Height137 in
Max Loading Height102 in
Max Vertical Wall Digging Depth70 in
Max Reach Along Ground151 in
Shipping Height of Unit90 in
Shipping Length of Unit128 in
