Kubota

K008-3

Mini Excavator

Operating Weight
2,200 lb
Max Digging Depth
69 in
Gross Power
7.7 hp
All mini excavators

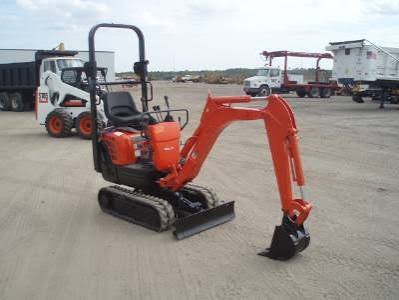

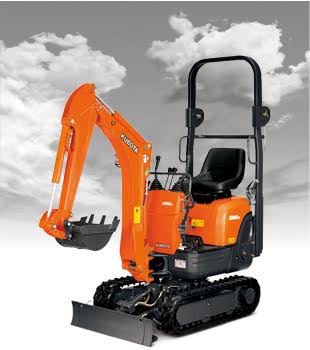

Kubota K008-3 Mini Excavator
1 / 5
Image 1 of 5
Image: x-hire.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,200 lb
Fuel Capacity3.2 gal
Hydraulic Pump Flow Capacity5.6 gal/min
Hydraulic System Fluid Capacity3.3 gal

Engine

Engine specifications
Engine ModelKUBOTA D722-EBH
Displacement44 in³
Power Measured @2,050 rpm
Gross Power7.7 hp
Number of Cylinders3
Fuel TypeDiesel
Engine TypeWater cooled

Dimensions

Dimensions specifications
Ground Clearance6 in
Height - Top of Cab35 in
Tail Swing Radius30 in
Width to Outside of Tracks28 in
Digging Depth67 in
Digging Reach67 in
Shoe width7 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.5 mph
Shoe Size7 in
Drawbar Pull1,390 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth69 in
Max Reach Along Ground120 in
Max Vertical Wall Digging Depth55 in
Max Loading Height80 in
Shipping Length of Unit108 in
Max Cutting Height114 in
Shipping Height of Unit89 in
Max.Dumping Height80 in
Max Digging Height114 in
Mximum dig radius121 in
Max. breakout force Bucket2,200 lb
Max. breakoutArm1,010 lb

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Electrical System

Electrical System specifications
Battery capacity—
Battery voltage12 VDC 30 AH
Engine shut-offKey
LightingFront working
