JCB
Airman
AX10U-4
Mini Excavator
21 specifications
1 / 5

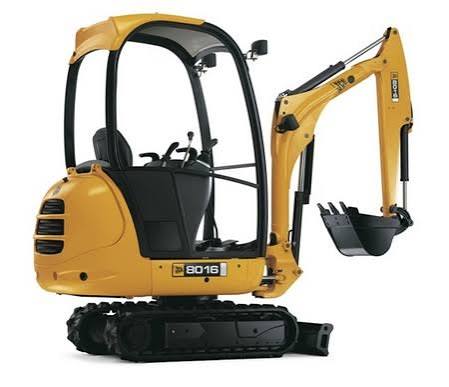

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 3,505 lb |
|---|---|
| Fuel Capacity | 6.2 gal |
| Hydraulic Pump Flow Capacity | 7.1 gal/min |
| Hydraulic System Fluid Capacity | 7.4 gal |
| Hydraulic System Relief Valve Pressure | 3,336 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 A |
| Engine Oil Capacity | 1.1 gal |
| Cooling System Fluid Capacity | 1.4 gal |
Engine
| Engine Model | 403C-11 |
|---|---|
| Displacement | 69 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 19.7 hp |
| Net Power | 19.0 hp |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 46 lb-ft |
Dimensions
| Ground Clearance | 7 in |
|---|---|
| Height - Top of Cab | 91 in |
| Length of Track on Ground | 44 in |
| Tail Swing Radius | 41 in |
| Width to Outside of Tracks | 40 in |
| Removal Counterweight Clearance | 16 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 30 in |
| Number of Track Rollers per Side | 3 |
| Max Travel Speed | 2.4 mph |
| Shoe Size | 9 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 80 in |
|---|---|
| Max Reach Along Ground | 149 in |
| Max Vertical Wall Digging Depth | 66 in |
| Max Loading Height | 100 in |
| Shipping Length of Unit | 132 in |
| Max Cutting Height | 134 in |
| Shipping Height of Unit | 91 in |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 84 in |
|---|---|
| Max Cutting Height | 137 in |
| Max Loading Height | 102 in |
| Max Vertical Wall Digging Depth | 70 in |
| Max Reach Along Ground | 151 in |
| Shipping Height of Unit | 90 in |
| Shipping Length of Unit | 128 in |
