New Holland
E200SR
Excavator
44 specifications
1 / 5

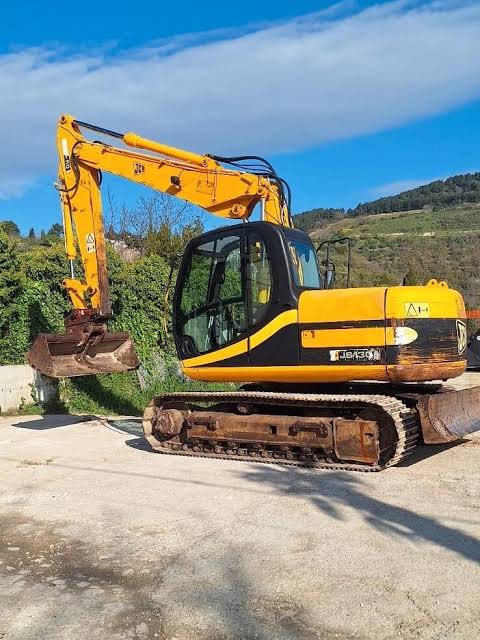

Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 38,413 lb |
|---|---|
| Fuel Capacity | 66.9 gal |
| Hydraulic Pump Flow Capacity | 64.0 gal/min |
| Hydraulic System Fluid Capacity | 32.8 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 3.5 gal |
| Cooling System Fluid Capacity | 4.3 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.6 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | Isuzu A4BGIT A Tier II emissions complaint |
|---|---|
| Displacement | 264 in³ |
| Net Power | 93.9 hp |
| Aspiration | Turbocharged Diesel |
| Engine Make | Isuzu |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 114 in |
| Length of Track on Ground | 122 in |
| Tail Swing Radius | 81 in |
| Width to Outside of Tracks | 110 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 78 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 29,225 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 204 in |
|---|---|
| Max Reach Along Ground | 308 in |
| Max Loading Height | 253 in |
| Max Vertical Wall Digging Depth | 180 in |
| Max Cutting Height | 348 in |
| Shipping Length of Unit | 300 in |
| Shipping Height of Unit | 114 in |
Bucket
| Maximum Bucket Capacity | 1.10 yd³ |
|---|---|
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 214 in |
|---|---|
| Max Vertical Wall Digging Depth | 191 in |
| Max Cutting Height | 364 in |
| Max Loading Height | 270 in |
| Max Reach Along Ground | 320 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 233 in |
|---|---|
| Max Cutting Height | 377 in |
| Max Loading Height | 282 in |
| Max Vertical Wall Digging Depth | 209 in |
| Max Reach Along Ground | 339 in |
