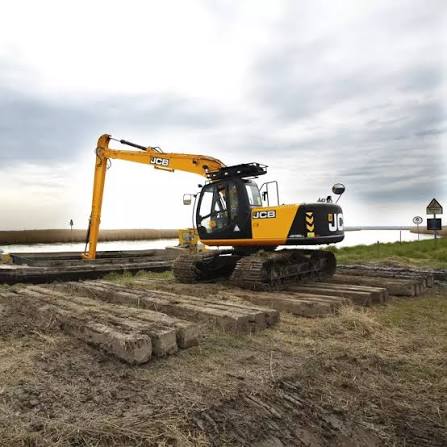

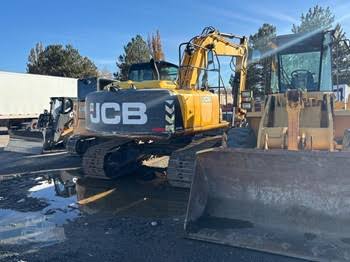

JCB
JS160LC TAB
- Operating Weight
- 37,997 lb
- Max Digging Depth
- 212 in
- Max Digging Depth
- 229 in
- Net Power
- 124.8 hp
1 / 5
Image 1 of 5
Specifications
62 data points
Operating Specifications
| Operating Weight | 37,997 lb |
|---|---|
| Fuel Capacity | 66.9 gal |
| Hydraulic Pump Flow Capacity | 36.5 gal/min |
| Hydraulic System Fluid Capacity | 37.6 gal |
| Hydraulic System Relief Valve Pressure | 4,554 psi |
| Engine Oil Capacity | 3.5 gal |
| Cooling System Fluid Capacity | 4.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | JCB EcoMAX 444 TCA EU Stage IV EPA Tier 4 Final compliant |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 124.8 hp |
| Engine Make | JCB |
| Alternator | 55 A |
| Battery | 2 x 12 V |
Hydraulic System
| Main pump - Maximum flow | 86.7 gal |
|---|
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 118 in |
| Length of Track on Ground | 122 in |
| Tail Swing Radius | 93 in |
| Width to Outside of Tracks | 110 in |
| Removal Counterweight Clearance | 42 in |
| Undercarriage Overall Length | 156 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 88 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
| Track Adjustment | Grease cylinder type |
Brakes & Steering
| Service brake | Hydraulic counter balance valve |
|---|
Fluid Capacities
| Engine Oil | 0.2 gal |
|---|---|
| DEF Tank | 3.8 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 212 in |
|---|---|
| Max Reach Along Ground | 341 in |
| Max Loading Height | 315 in |
| Max Vertical Wall Digging Depth | 168 in |
| Max Cutting Height | 403 in |
| Minimum swing radius | 86 in |
| Max Digging Reach | 348 in |
| Max Digging Reach on Ground | 341 in |
Bucket
| Reference Bucket Capacity | 1.20 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.20 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 229 in |
|---|---|
| Max Vertical Wall Digging Depth | 186 in |
| Max Cutting Height | 420 in |
| Max Loading Height | 330 in |
| Max Reach Along Ground | 359 in |
| Minimum swing radius | 88 in |
| Max Digging Reach | 365 in |
| Max Digging Reach on Ground | 359 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 243 in |
|---|---|
| Max Cutting Height | 426 in |
| Max Loading Height | 342 in |
| Max Vertical Wall Digging Depth | 206 in |
| Max Reach Along Ground | 373 in |
| Minimum swing radius | 102 in |
