JLG

1500SJ

Aerial Lift

Max Platform Height
1,800 in
Overall Length
743 in
Overall Width
98 in
All aerial lifts

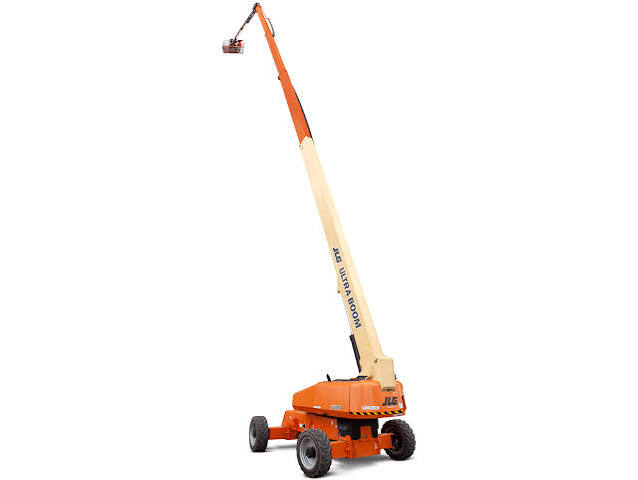

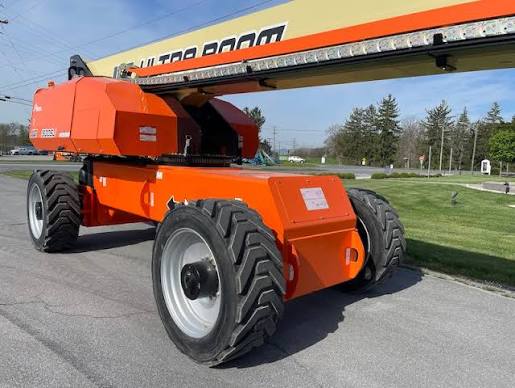

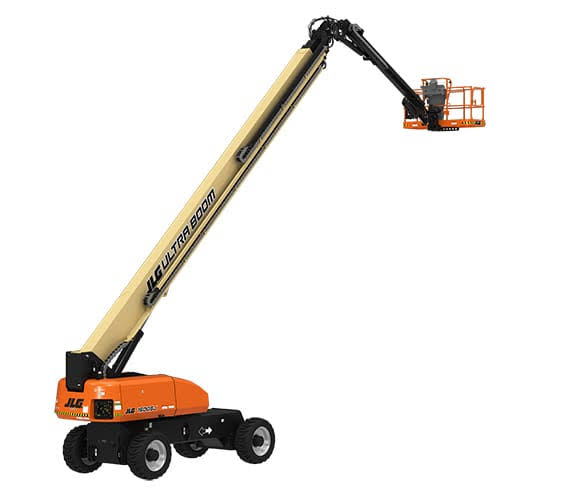

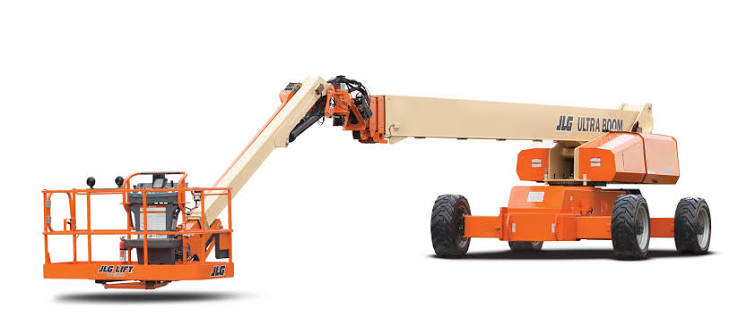

JLG 1500SJ Aerial Lift
1 / 5
Image 1 of 5
Image: fairchildequipment.com

Specifications

27 data points

Engine

Engine specifications
System Voltage12 V
Maximum Ground Bearing Pressure113 psi
Diesel Engine TypeDEUTZ TCD2.9L4 Tier 4 Final 74.2

Dimensions

Dimensions specifications
Ground Clearance0 in
Overall Length743 in
Overall Width98 in
Transport Length516 in
Overall Height - mast lowered120 in
Platform Dimension A36 in
Platform Dimension B96 in
Tailswing Radius67 in
Overall Width (Axles Extended)151 in

Performance

Performance specifications
Operating Weight48,000 lb
Tire Size445/500710 Foam-Filled
Hydraulic System Fluid Capacity55.0 gal
Fuel Capacity31.0 gal
Gradeability40.0 %
Drive Speed3.0 mph
Axle Oscillation12 in
Turning Radius - Outside (axles retracted)271 in
Turning Radius - Outside (axles extended)233 in

Swing System

Swing System specifications
Swing360 °
Swing TypeContinuous

Platform

Platform specifications
Max Platform Height1,800 in
Max Horizontal Reach960 in
Platform Capacity - Unrestricted500 lb
Platform Capacity - Restricted1,000 lb
