JLG

2032ES

Aerial Lift

Max Platform Height
46 in
Overall Length
91 in
Overall Width
33 in
All aerial lifts

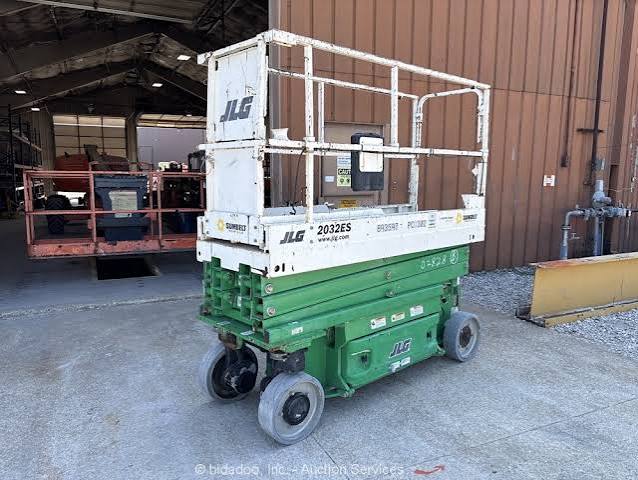

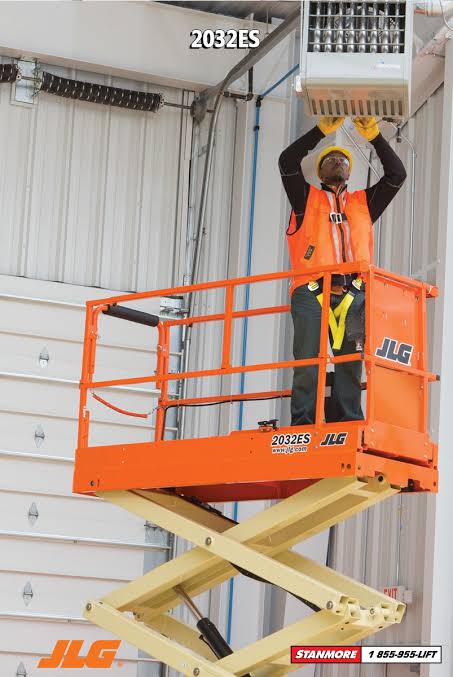

JLG 2032ES Aerial Lift
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

29 data points

Engine

Engine specifications
Battery Amp Hours—
Charger Amps20
Maximum Ground Bearing Pressure81 psi

Dimensions

Dimensions specifications
Ground Clearance48 in
Wheelbase74 in
Overall Length91 in
Overall Width33 in
Overall Height88 in
Turning Radius83 in
Platform Dimension B93 in
Platform Dimension A31 in

Brakes & Steering

Brakes & Steering specifications
Brakes TypeElectric Friction

Performance

Performance specifications
Operating Weight3,610 lb
Tire Size16 X 5 in
Hydraulic System Fluid Capacity1.3 gal
Gradeability25.0 %
Drive Speed - Platform Lowered2.8 mph
Drive Speed - Platform Elevated0.5 mph
Hydraulic Pump TypeFixed Displacement Gear
Maximum Drive Height241 in
Drive System24V Electric

Platform

Platform specifications
Max Platform Height46 in
Max Working Height300 in
Lift Time28.0 s
Lower Time40.0 s
Height of Rails44 in
Platform Capacity - Unrestricted800 lb
Platform Railing Height312 in
Platform Capacity - Extension250 lb
