JLG

860SJ

Aerial Lift

Max Platform Height
1,032 in
Overall Width
98 in
All aerial lifts

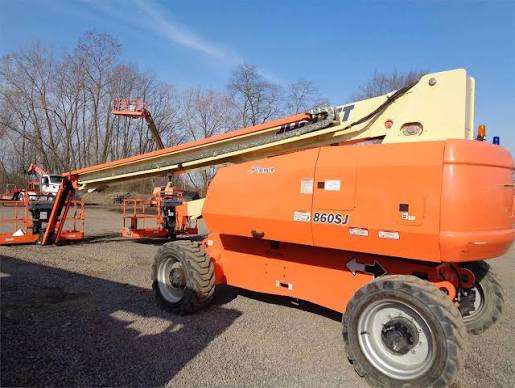

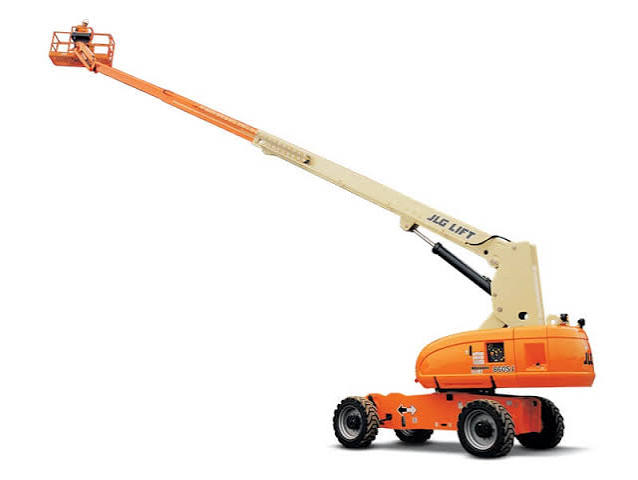

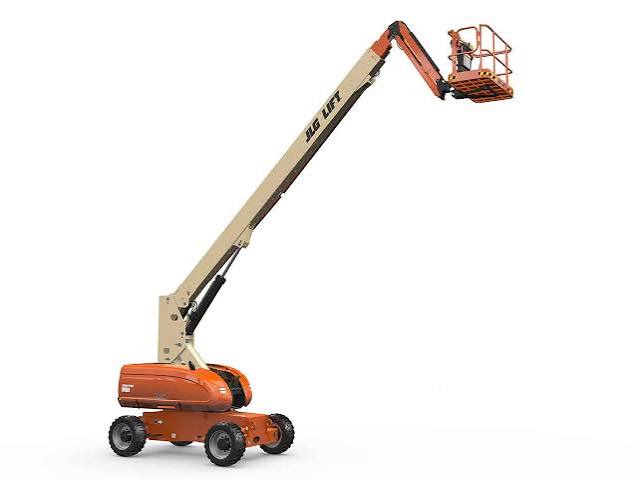

JLG 860SJ Aerial Lift
1 / 5
Image 1 of 5
Image: papemh.com

Specifications

23 data points

Engine

Engine specifications
System Voltage12 V
Maximum Ground Bearing Pressure81 psi
Diesel Engine TypeDEUTZ TD 2.9L Tier 4 Final 67
Dual Fuel Engine TypeFord MSG425 84hp

Dimensions

Dimensions specifications
Ground Clearance11 in
Overall Width98 in
Turning Radius238 in
Overall Height - mast lowered120 in
Platform Dimension A36 in
Platform Dimension B96 in
Tailswing Radius57 in

Performance

Performance specifications
Operating Weight36,230 lb
Tire Size15-625 Pnuematic
Hydraulic System Fluid Capacity48.0 gal
Fuel Capacity31.0 gal
Drive Speed3.5 mph
Axle Oscillation8 in

Swing System

Swing System specifications
Swing360 °
Swing TypeContinuous

Platform

Platform specifications
Max Platform Height1,032 in
Max Horizontal Reach900 in
Platform Capacity - Unrestricted500 lb
Platform Capacity - Restricted750 lb
