John Deere

1270D

Processor

Operating Weight
38,580 lb
Net Power
214.6 hp
All processors/harvesters

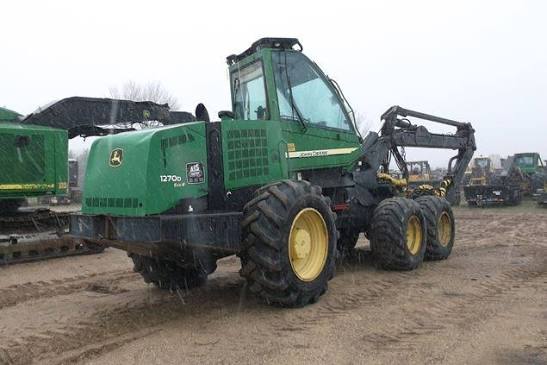

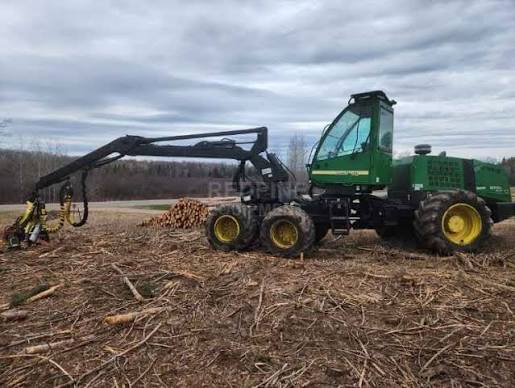

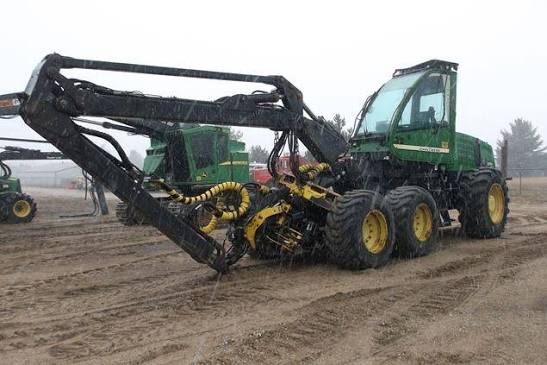

John Deere 1270D Processor
1 / 5
Image 1 of 5
Image: lumbermenonline.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,580 lb
Max Speed15.5 mph
Fuel Capacity127.0 gal
Operating Voltage24 V
Alternator Supplied Amperage140 A
Hydraulic System Fluid Capacity76.6 gal
Cooling System Fluid Capacity7.4 gal

Engine

Engine specifications
Engine Model6090HTJ
Displacement552 in³
Power Measured @1,400 rpm
Net Power214.6 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque811 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab146 in
Wheelbase159 in
Overall Width109 in
Forward Tilt11 °
Side Tilt15 °

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Ground Clearance25 in

Boom

Boom specifications
Max Reach w/ Head366 in

Drive System

Drive System specifications
Tire Size - front600 x 26.5 20 PR Forest King F NK
Tire Size - rear600 x 34 14 PR TRS NK
