John Deere

1470D

Processor

Operating Weight
43,431 lb
Gross Power
241.0 hp
All processors/harvesters

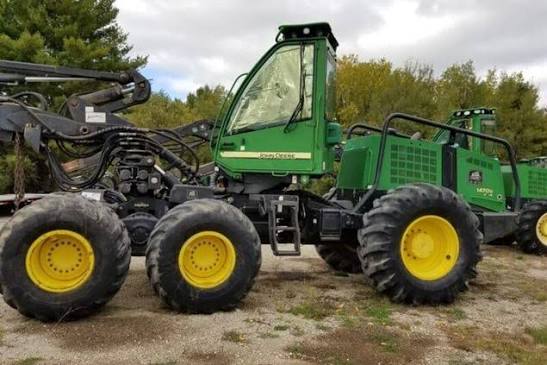

John Deere 1470D Processor
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,431 lb
Max Speed13.7 mph
Fuel Capacity127.0 gal
Operating Voltage24 V
Alternator Supplied Amperage140 A
Hydraulic System Fluid Capacity76.6 gal
Cooling System Fluid Capacity7.4 gal

Engine

Engine specifications
Engine Model6090HTJ
Displacement552 in³
Power Measured @1,200 rpm
Gross Power241.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque922 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab150 in
Wheelbase159 in
Overall Width119 in
Forward Tilt11 °
Side Tilt15 °

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Ground Clearance29 in

Boom

Boom specifications
Max Reach w/ Head340 in

Drive System

Drive System specifications
Tire Size - front650 x 26.5 20 PR Forest King ELS NK
Tire Size - rear700 x 34 14 PR TRS NK
