John DeereJohn Deere
4475
Skid Steer Loader
24 specifications
1 / 5

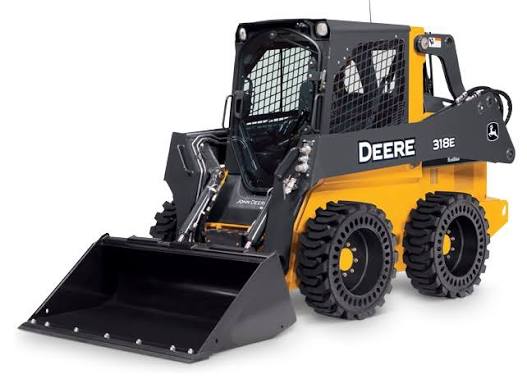

Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 7,006 lb |
|---|---|
| Max Speed | 10.1 mph |
| Fuel Capacity | 20.1 gal |
| Hydraulic System Fluid Capacity | 18.0 gal |
| Tire Size | 10 x 16.5 8 PR SKS Extra Wall Heavy Duty |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | Cat C4.4 ACERT |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,500 rpm |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged inter cooled |
| Torque Measured @ | 1,625 rpm |
| Engine Make | Yanmar |
| Stroke | 5 in |
| Bore | 4 in |
| Air cleaner | Dry dual element |
| Emissions Certification | Tier 4 |
| Net Torque | 178 lb-ft |
| Gross Power - SAE J1995 | 120.0 hp |
| Net Torque Rise | — |
Hydraulic System
| Pump Flow Capacity | 25.1 gal/min |
|---|---|
| Hydraulic Horsepower-Standard Flow | 34.0 hp |
| Hydraulic Horsepower_High Flow | 47.0 hp |
| System Pressure at Couplers | 3,250 psi |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Wheelbase | 46 in |
| Reach at Max Lift and Dump | 38 in |
| Height - Top of ROPS/FOPS | 78 in |
| Length with Bucket | 137 in |
| Length w/o Bucket | 113 in |
| Angle of departure | 26 ° |
| Hinge pin height, maximum height | 120 in |
| Turning Radius - TTS870 | 80 in |
Loader
| Operating Load Rating | 1,950 lb |
|---|---|
| Operating Width | 63 in |
| Tipping load (ISO 14397) | 3,904 lb |
| bucket breakout force (ISO 14397) | 2,101 lb |
| Boom breakout force | 357,221 lb |
| Width without Bucket | 64 in |
| Dump angle @ max. height | 43 ° |
| Dump height | 96 in |
| Rollback - Ground Level | 33 ° |
Drive System
| Maximum Travel Speed | 2.4 mph |
|---|
Service Refill Capacities
| Cooling System | 6.3 gal |
|---|---|
| Hydraulic Tank | 28.0 gal |
Axles
| Tractive Effort | 7,728 lb-ft |
|---|---|
| Maximum Axle Torque | 4,701 lb-ft |
