John Deere

320E

Skid Steer Loader

Operating Weight
7,156 lb
Max Speed
11.1 mph
All skid steer loaders

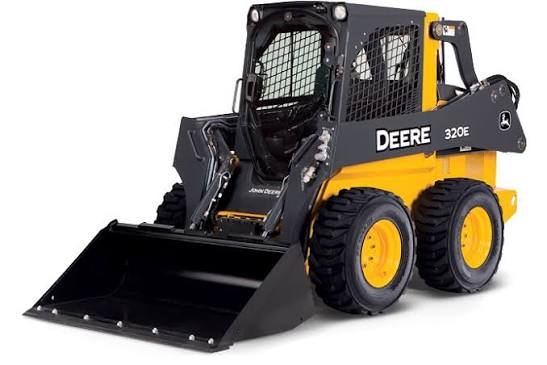

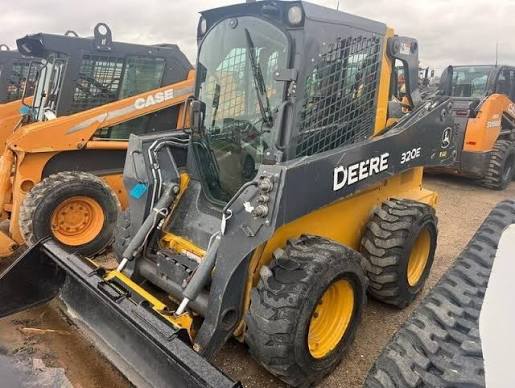

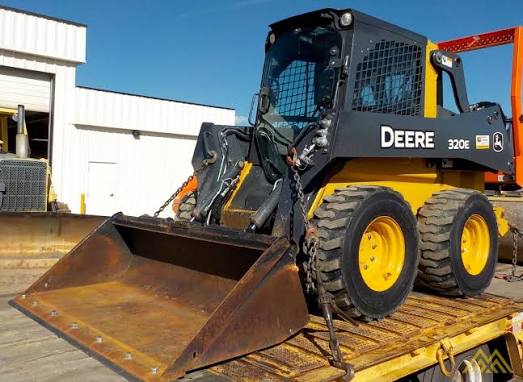

John Deere 320E Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,156 lb
Max Speed11.1 mph
Fuel Capacity20.1 gal
Hydraulic System Fluid Capacity20.1 gal
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model4TNV98C standard
Displacement201 in³
Power Measured @2,500 rpm
Number of Cylinders4
AspirationNaturally aspirated
Torque Measured @1,625 rpm
Engine MakeYanmar
Air cleanerDry dual element
Emissions CertificationTier 4
Net Torque178 lb-ft
Net Torque Rise—

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.1 gal/min
Hydraulic Horsepower-Standard Flow38.0 hp
Hydraulic Horsepower_High Flow53.0 hp
System Pressure at Couplers3,250 psi

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase46 in
Reach at Max Lift and Dump36 in
Height - Top of ROPS/FOPS80 in
Length with Bucket137 in
Length w/o Bucket113 in
Angle of departure28 °
Hinge pin height, maximum height122 in
Turning Radius - TTS87080 in

General Specifications

General Specifications specifications
Engine Power HP (KW)69 (51.7) Starting 2016 Model Year
Operating Width IN. (CM)69.2 (176) Starting 2016 Model Year
OPERATING LOAD LBS. (KG)2,190 (994) Starting 2016 Model Year

Loader

Loader specifications
Operating Load Rating2,350 lb
Operating Width69 in
Tipping load (ISO 14397)4,380 lb
Boom breakout force3,200 lb
Width without Bucket70 in
Dump angle @ max. height43 °
Dump height96,851 in

Axles

Axles specifications
Tractive Effort7,491 lb-ft
Maximum Axle Torque4,994 lb-ft
