John Deere

325

Skid Steer Loader

Operating Weight
8,390 lb
Bucket Capacity
0.71 yd³
Max Speed
11.0 mph
All skid steer loaders

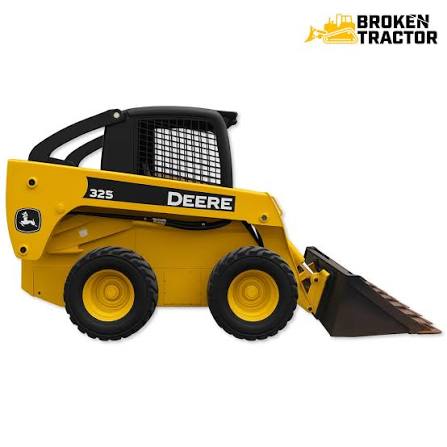

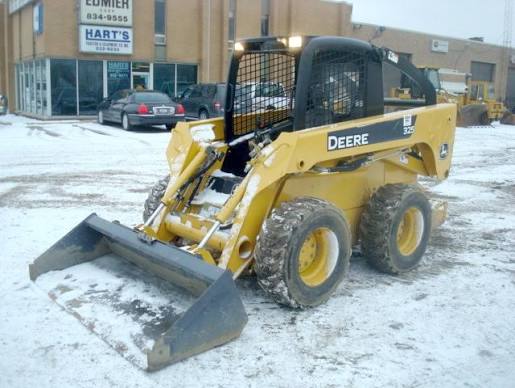

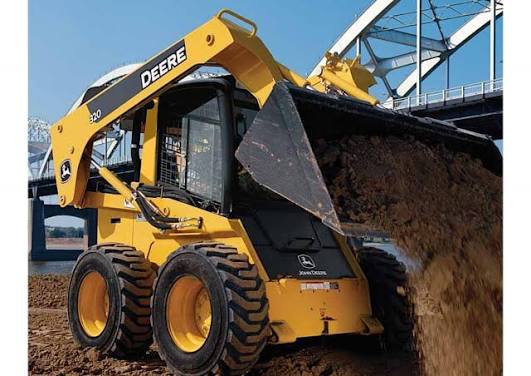

John Deere 325 Skid Steer Loader
1 / 5
Image 1 of 5
Image: rent1usa.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,390 lb
Max Speed11.0 mph
Fuel Capacity24.1 gal
Tire Size12x16.5 8 PR SKS
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model5030T
Displacement186 in³
Power Measured @2,800 rpm
Number of Cylinders5
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity22.0 gal/min
Relief Valve Pressure3,100 psi

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab81 in
Wheelbase48 in
Width Over Tires74 in
Reach at Max Lift and Dump34 in
Length with Bucket139 in
Clearance at Max Lift and Dump101 in
Turning Radius from Center - inc bucket84 in
Length w/o Bucket117 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating2,500 lb
Tipping Angle5,000 °
Breakout Force7,500 psi
