John Deere

328E

Skid Steer Loader

Operating Weight
2,800 lb
All skid steer loaders

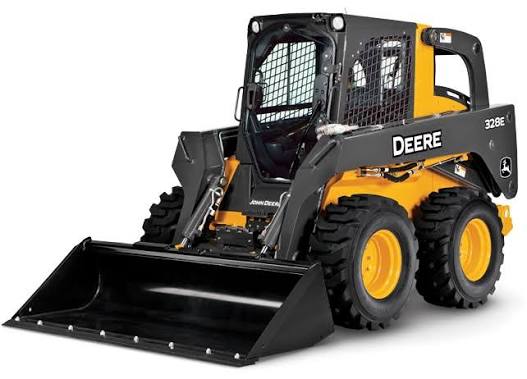

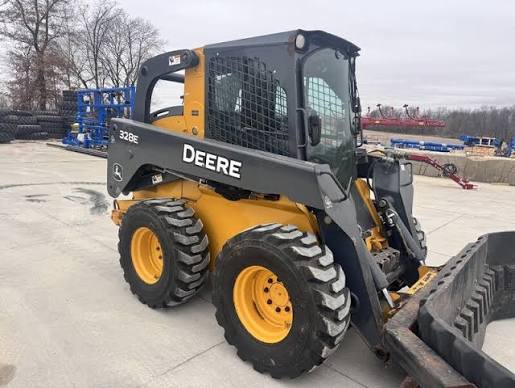

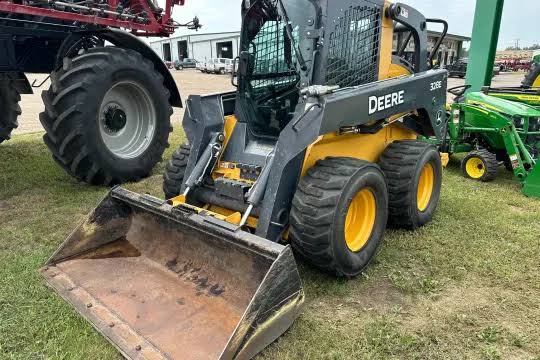

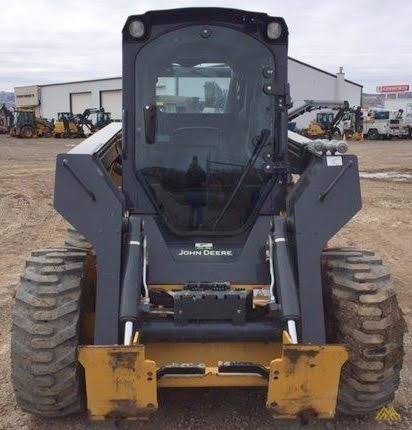

John Deere 328E Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,800 lb
Fuel Capacity26.0 gal
Hydraulic System Fluid Capacity21.2 gal
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model4TNV94CHT
Displacement189 in³
Number of Cylinders4
Engine MakeYanmar
Emissions CertificationTier 4

General Specifications

General Specifications specifications
Engine Power HP (KW)86 (64) Starting 2016 Model Year
Operating Width IN. (CM)76.8 (195) Starting 2016 Model Year
OPERATING LOAD LBS. (KG)2,800 (1,271) Starting 2016 Model Year

Loader

Loader specifications
Operating Load Rating2,800 lb
Operating Width77 in
Tipping load (ISO 14397)5,600 lb
bucket breakout force (ISO 14397)10,300 lb
Boom breakout force5,000 lb

Axles

Axles specifications
Maximum Axle Torque6,235 lb-ft
