John Deere

490D

Excavator

Operating Weight
27,430 lb
Max Digging Depth
219 in
Max Digging Depth
344 in
Net Power
75.0 hp
All excavators

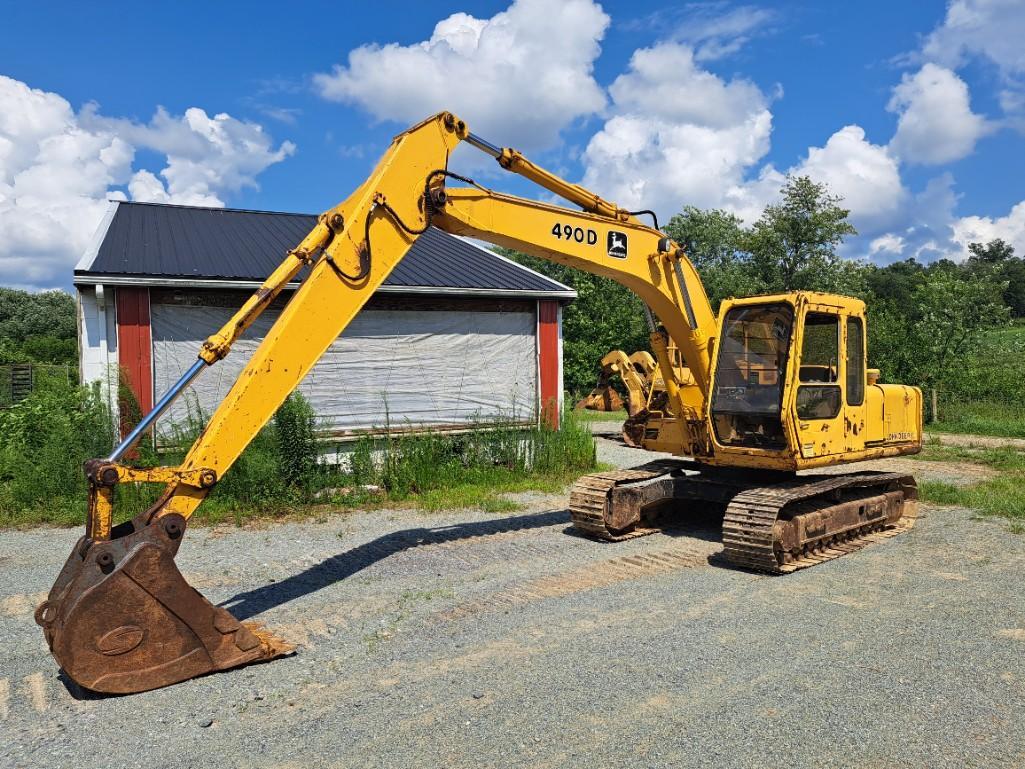

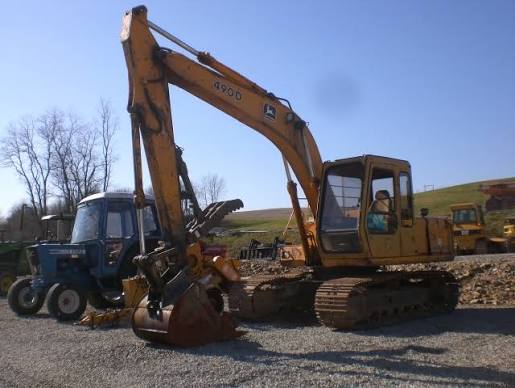

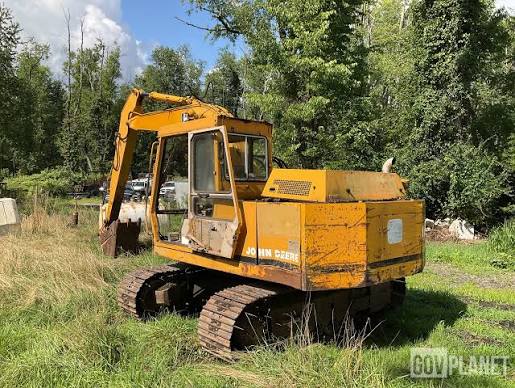

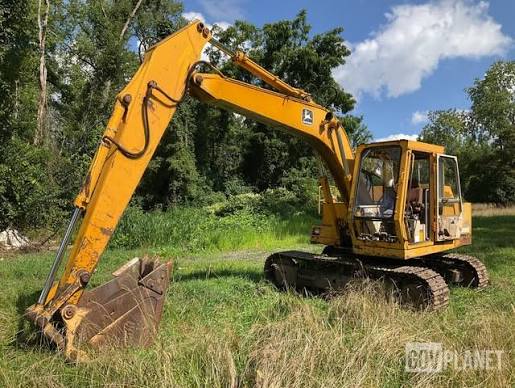

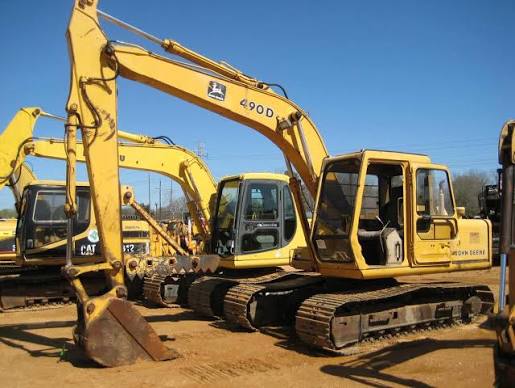

John Deere 490D Excavator
1 / 5
Image 1 of 5
Image: proxibid.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,430 lb
Fuel Capacity66.0 gal
Hydraulic Pump Flow Capacity31.7 gal/min
Hydraulic System Fluid Capacity34.0 gal
Hydraulic System Relief Valve Pressure5,050 psi
Engine Oil Capacity2.4 gal
Cooling System Fluid Capacity4.8 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.9 gal

Engine

Engine specifications
Engine Model4276D
Displacement276 in³
Power Measured @2,200 rpm
Gross Power80.0 hp
Net Power75.0 hp
Torque Measured @1,200 rpm
Max Torque215 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab113 in
Length of Track on Ground110 in
Tail Swing Radius88 in
Width to Outside of Tracks106 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge79 in
Max Travel Speed2.8 mph
Shoe Size28 in
Drawbar Pull18,300 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth219 in
Max Reach Along Ground319 in
Max Loading Height239 in
Max Vertical Wall Digging Depth192 in
Max Cutting Height332 in
Shipping Length of Unit302 in
Shipping Height of Unit113 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth344 in
Max Vertical Wall Digging Depth210 in
Max Cutting Height347 in
Max Loading Height252 in
Max Reach Along Ground340 in
Shipping Length of Unit304 in
Shipping Height of Unit113 in
