John Deere
Caterpillar
914G
Wheel Loader
41 specifications
1 / 5

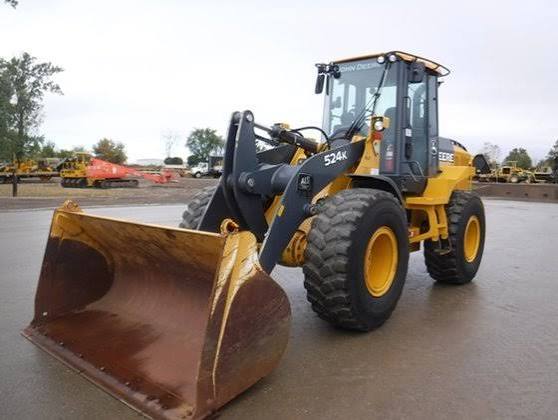

Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 27,077 lb |
|---|---|
| Fuel Capacity | 85.9 gal |
| Tire Size | 20.5 R 25 |
| Hydraulic System Fluid Capacity | 24.1 gal |
| Static Tipping Weight | 22,681 lb |
| Operating Voltage | 24 V |
| Turning Radius | 198 in |
| Engine Oil Fluid Capacity | 5.1 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 4.5 gal |
| Rear Axle/Diff Fluid Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 6.1 gal |
| Transmission Fluid Capacity | 4.9 gal |
| Rated Bucket Capacity | 2.75 yd³ |
Engine
| Engine Model | E 6068H Tier III certified |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 146.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged charge air cooled |
| Torque Measured @ | 1,600 rpm |
| Make | John Deere |
| Torque Rise | 47.0 % |
Weights
| Operating Weight | 27,077 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 43.6 gal/min |
|---|---|
| Raise Time | 6.1 s |
| Lower Time | 3.0 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 3,625 psi |
| Pump Type | variable displacement axial piston |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 117 in |
| Width Over Tires | 101 in |
| Reach at Max Lift and Dump | 40 in |
| Length with Bucket on Ground | 289 in |
| Hinge Pin - Max Height | 149 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 15.0 mph |
| Transmission Type | Countershaft powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.80 yd³ |
|---|---|
| Bucket Capacity - struck | 2.30 yd³ |
| Dump Clearance at Max Raise | 109 in |
| Breakout Force | 20,267 lb |
| Bucket Width | 101 in |
