John Deere

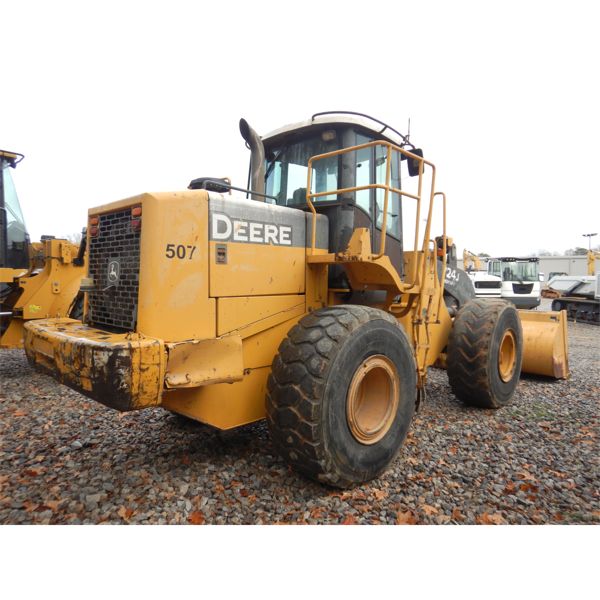

724J WH High-Lift
- Operating Weight
- 51,546 lb
- Bucket Capacity - heaped
- 5.00 yd³
- Net Power
- 215.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 51,546 lb |
|---|---|
| Fuel Capacity | 100.0 gal |
| Tire Size | 23.5 -25 |
| Hydraulic System Fluid Capacity | 31.0 gal |
| Static Tipping Weight | 32,780 lb |
| Operating Voltage | 24 V |
| Turning Radius | 268 in |
| Engine Oil Fluid Capacity | 6.7 gal |
| Rear Axle Oscillation | 18 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 7.7 gal |
| Rear Axle/Diff Fluid Capacity | 7.7 gal |
| Cooling System Fluid Capacity | 8.2 gal |
| Transmission Fluid Capacity | 6.9 gal |
Engine
| Engine Model | 6081H |
|---|---|
| Displacement | 496 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 215.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged charge air cooled |
| Torque Measured @ | 1,300 rpm |
| Torque Rise | 49.0 % |
Hydraulic System
| Pump Flow Capacity | 74.0 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 3,600 psi |
| Pump Type | Variable axial piston |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 139 in |
| Wheelbase | 126 in |
| Width Over Tires | 114 in |
| Reach at Max Lift and Dump | 46 in |
| Length with Bucket on Ground | 333 in |
| Hinge Pin - Max Height | 182 in |
Transmission
| Max Speed - Forward | 14.7 mph |
|---|---|
| Max Speed - Reverse | 15.5 mph |
| Transmission Type | Automatic Powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 5.00 yd³ |
|---|---|
| Bucket Capacity - struck | 4.00 yd³ |
| Dump Clearance at Max Raise | 135 in |
| Breakout Force | 23,075 lb |
| Bucket Width | 115 in |
