John Deere
Caterpillar
928G
Wheel Loader
105 specifications
1 / 5

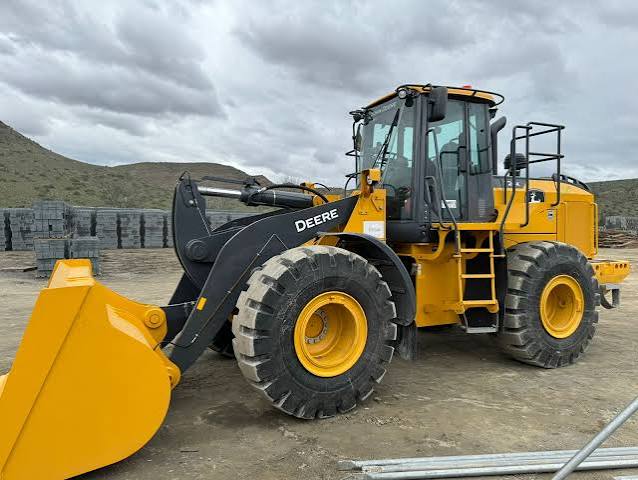

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 42,812 lb |
|---|---|
| Fuel Capacity | 104.9 gal |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Rated Bucket Capacity | 5.00 yd³ |
Engine
| Engine Model | Powertech PSX 6090 |
|---|---|
| Displacement | 549 in³ |
| Net Power | 264.0 hp |
| Engine Make | John Deere |
| Make | Deere PowerTech |
| Torque Rise | 61.0 % |
| Torque | 856 lb-ft |
| Alternator | 130 A |
| System Voltage | 24 V |
| Rated Speed | 1,800 rpm |
| Transmission Type | Powershift |
| Emission level | Tier 4 |
| Pump | Piston |
| Engine Output-Net | 264.2 hp |
Weights
| Operating Weight | 48,988 lb |
|---|
Dimensions
| Height - Top of Cab | 135 in |
|---|---|
| Wheelbase | 128 in |
| Width Over Tires | 114 in |
| Reach at Max Lift and Dump | 64 in |
| Length with Bucket on Ground | 324 in |
| Hinge Pin - Max Height | 163 in |
| Turning Circle | 522 in |
Transmission
| Pump Flow | 78.5 gal/min |
|---|---|
| System Pressure | 252 psi |
Fluid Capacities
| Hydraulic Tank | 27.8 gal |
|---|---|
| Transmission | 6.4 gal |
| Heaped Capacity | 4.20 yd³ |
Bucket
| Bucket Capacity - Smallest | 4.09 yd³ |
|---|---|
| Breakout Force | 34,408 lb |
| Largest bucket capacity | 4.80 yd³ |
General Specifications
| Operating Weight | 48,988 (22,200) — Starting 2019 Model Year |
|---|---|
| Bucket Capacity | 4.0 - 4.75 (3.1 - 3.6) — Starting 2019 Model Year |
| Engine type | Deere PSX 6090 — Starting 2019 Model Year |
| Engine Power | 264 (197) — Starting 2019 Model Year |
| Max Dump Height | 9.7 (2.9) — Starting 2019 Model Year |
Driveline
| Ride control system | Optional |
|---|---|
| Parking Brake Type | Wet Multi Disc - Transmission |
| Service Brake - Location | Axle Inboard |
| Service Brake Actuation | Hydraulic |
| Service Brake Type | Wet Disc |
| Tire size - Standard | 23.5 R25 |
| Differential lock | Front- Locking Rear- Open |
