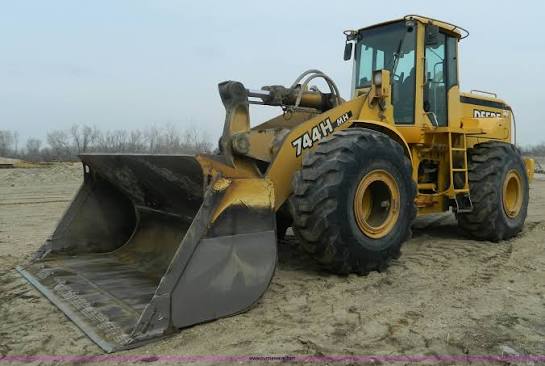

John Deere
744H MH
- Operating Weight
- 51,590 lb
- Bucket Capacity - heaped
- 5.79 yd³
- Gross Power
- 283.0 hp
- Net Power
- 260.0 hp
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 51,590 lb |
|---|---|
| Fuel Capacity | 114.0 gal |
| Tire Size | 26.5-25 |
| Hydraulic System Fluid Capacity | 38.0 gal |
| Static Tipping Weight | 36,310 lb |
| Operating Voltage | 24 V |
| Turning Radius | 243 in |
| Engine Oil Fluid Capacity | 10.1 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 12.2 gal |
| Rear Axle/Diff Fluid Capacity | 12.2 gal |
| Cooling System Fluid Capacity | 11.4 gal |
| Transmission Fluid Capacity | 7.4 gal |
Engine
| Engine Model | 6125A |
|---|---|
| Displacement | 766 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 283.0 hp |
| Net Power | 260.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged with Aftercooler |
| Torque Measured @ | 1,500 rpm |
| Torque Rise | 40.0 % |
Hydraulic System
| Pump Flow Capacity | 112.0 gal/min |
|---|---|
| Raise Time | 6.1 s |
| Lower Time | 2.8 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,200 psi |
| Pump Type | Piston Pump |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 139 in |
| Wheelbase | 134 in |
| Width Over Tires | 117 in |
| Reach at Max Lift and Dump | 76 in |
| Length with Bucket on Ground | 352 in |
| Hinge Pin - Max Height | 178 in |
Transmission
| Max Speed - Forward | 24.5 mph |
|---|---|
| Max Speed - Reverse | 19.3 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 5.79 yd³ |
|---|---|
| Bucket Capacity - struck | 5.00 yd³ |
| Dump Clearance at Max Raise | 127 in |
| Breakout Force | 37,175 lb |
| Bucket Width | 130 in |
