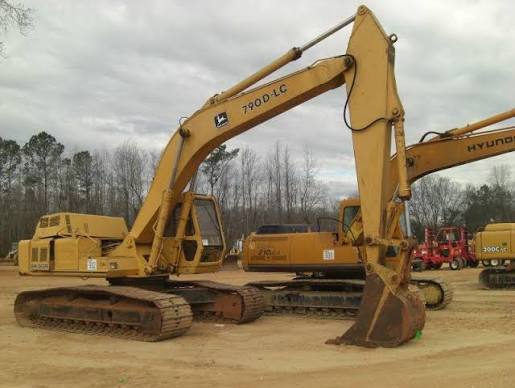

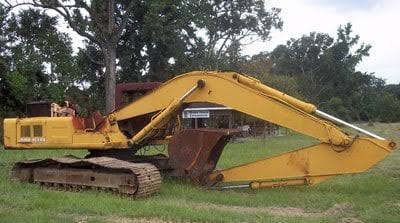

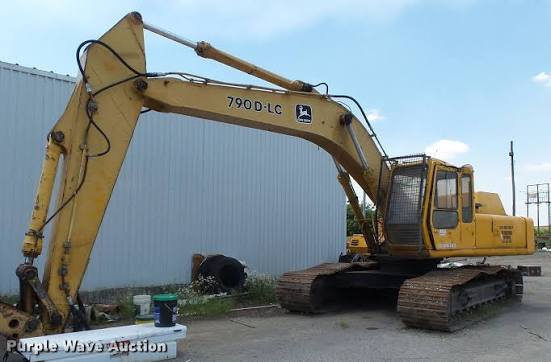

John Deere
790D
- Operating Weight
- 53,143 lb
- Max Digging Depth
- 246 in
- Max Digging Depth
- 271 in
- Net Power
- 155.0 hp
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 53,143 lb |
|---|---|
| Fuel Capacity | 82.0 gal |
| Hydraulic Pump Flow Capacity | 124.8 gal/min |
| Hydraulic System Fluid Capacity | 71.0 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 25.0 gal |
| Cooling System Fluid Capacity | 34.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 8.0 gal |
Engine
| Engine Model | 6466A |
|---|---|
| Displacement | 466 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 165.0 hp |
| Net Power | 155.0 hp |
| Aspiration | Turbocharged with aftercooler |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 510 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 137 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 2.8 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 37,250 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 246 in |
|---|---|
| Max Reach Along Ground | 376 in |
| Max Loading Height | 251 in |
| Max Vertical Wall Digging Depth | 205 in |
| Max Cutting Height | 362 in |
| Shipping Length of Unit | 403 in |
| Shipping Height of Unit | 126 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.40 yd³ |
| Minimum Bucket Capacity | 0.80 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 271 in |
|---|---|
| Max Vertical Wall Digging Depth | 238 in |
| Max Cutting Height | 373 in |
| Max Loading Height | 259 in |
| Max Reach Along Ground | 400 in |
| Shipping Length of Unit | 398 in |
| Shipping Height of Unit | 119 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 296 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Loading Height | 269 in |
| Max Vertical Wall Digging Depth | 263 in |
| Max Reach Along Ground | 422 in |
| Shipping Length of Unit | 401 in |
| Shipping Height of Unit | 125 in |
