554
Forwarder
33 specifications
1 / 5

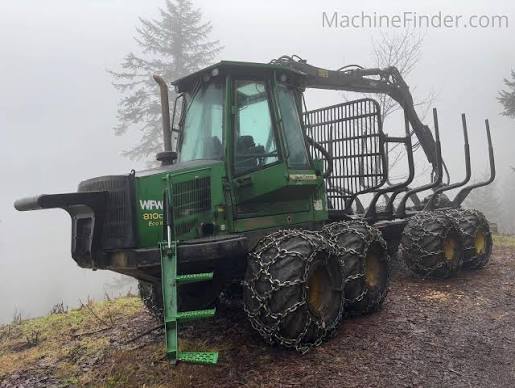

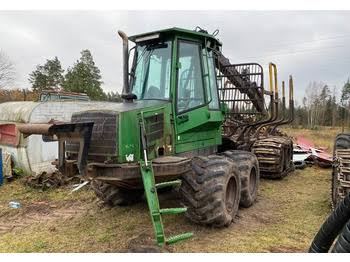

Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight - 8wd | 24,185 lb |
|---|---|
| Fuel Capacity | 29.1 gal |
| Hydraulic System Fluid Capacity | 20.7 gal |
| Alternator Supplied Amperage | 100 A |
| Operating Voltage | 24 V |
| Front/Rear Tire Size - 8wd | 600x22.5/600x22.5 |
Engine
| Engine Model | 4045HTJ |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 2,000 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Power | 115.0 hp |
| Torque | 367 lb-ft |
Hydraulic System
| Pump Type | load-sensing |
|---|---|
| Relief Valve Pressure | 3,481 psi |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Wheelbase | 168 in |
| Width Over Tires | 101 in |
| Length | 317 in |
| Length of Bunk Area | 151 in |
| Width of Bunk Area | 97 in |
Transmission
| Max Speed | 14.3 mph |
|---|---|
| Transmission Type | hydrostatic/mechanical |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bunk
| Load Area | 14.60 yd³ |
|---|---|
| Load Weight - 8wd | 19,842 lb |
Crane
| Max Reach | 386 in |
|---|---|
| Gross Lift Torque | 56,054 lb-ft |
| Crane Type | John Deere CFI |
| Gross Slew Torque | 14,014 lb-ft |

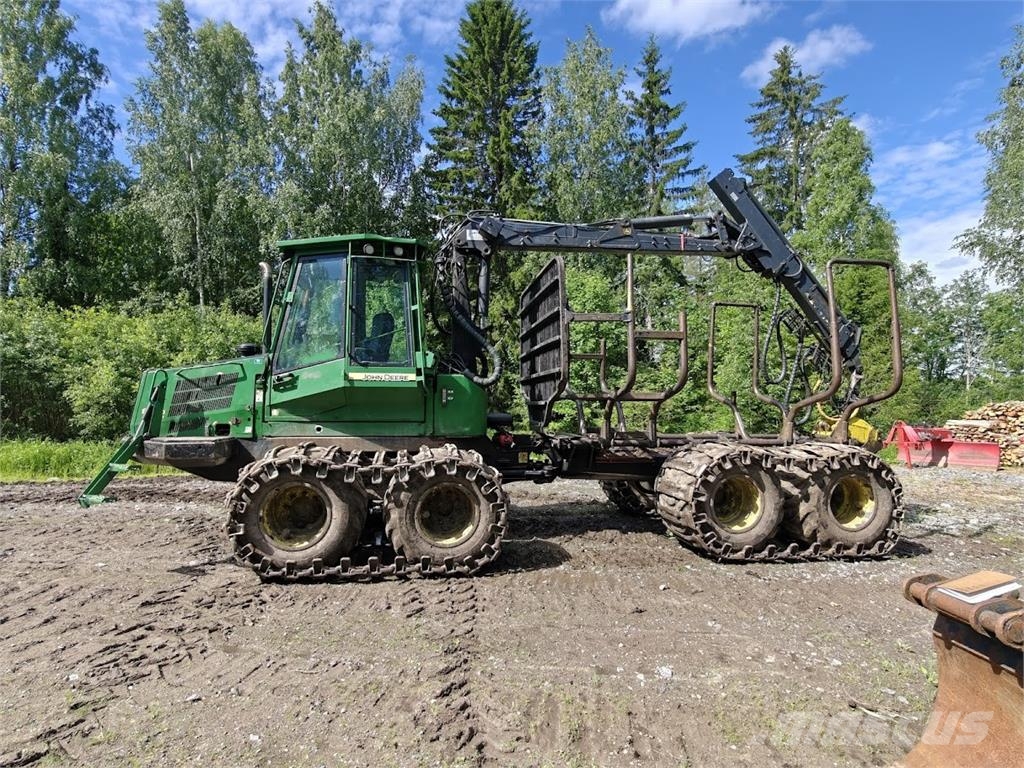

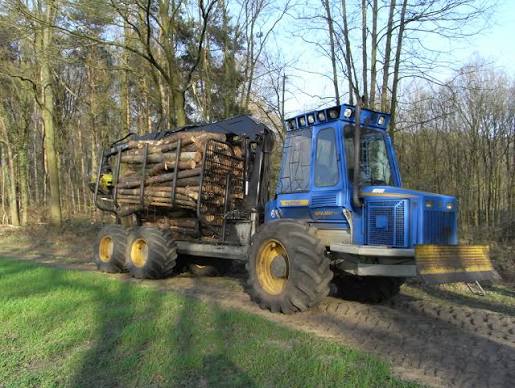

Comparable machines
