Rottne

Solid F14

Forwarder

Operating Weight - 8wd
32,849 lb
Max Speed
15.6 mph
Displacement
415 in³
All forwarders

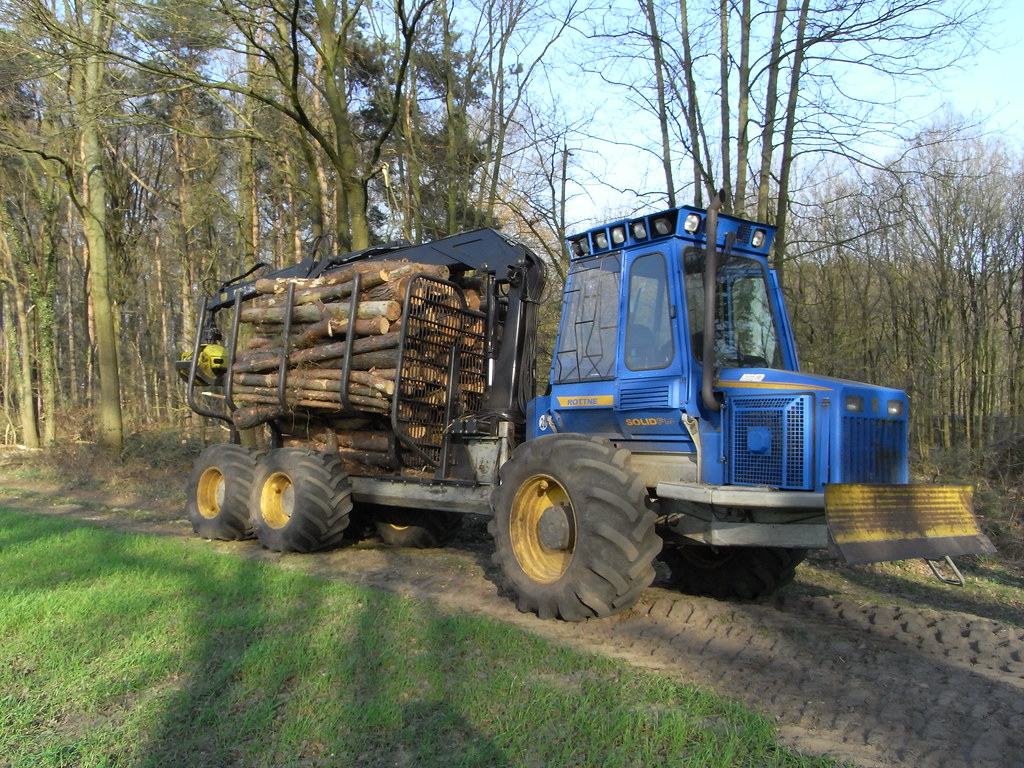

Rottne Solid F14 Forwarder
1 / 5
Image 1 of 5
Image: flickr.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd32,849 lb
Fuel Capacity42.3 gal
Hydraulic System Fluid Capacity55.5 gal
Alternator Supplied Amperage110 A
Operating Voltage24 V
Front/Rear Tire Size - 8wd600/55x26.5 T428 SB

Engine

Engine specifications
Engine Modele 6068 T 275
Displacement415 in³
Power163.0 hp
Torque449 lb-ft

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure2,900 psi

Dimensions

Dimensions specifications
Ground Clearance25 in
Wheelbase214 in
Width Over Tires101 in
Length380 in

Transmission

Transmission specifications
Max Speed15.6 mph
Transmission TypeHydrostatic Mechanical
Number of Forward Gears2
Number of Reverse Gears2

Bunk

Bunk specifications
Load Area23.63 yd³
Load Weight - 8wd30,865 lb

Crane

Crane specifications
Max Reach280 in
Gross Lift Torque17,200 lb-ft
