John Deere

8875

Skid Steer Loader

Operating Weight
7,004 lb
Max Speed
12.1 mph
All skid steer loaders

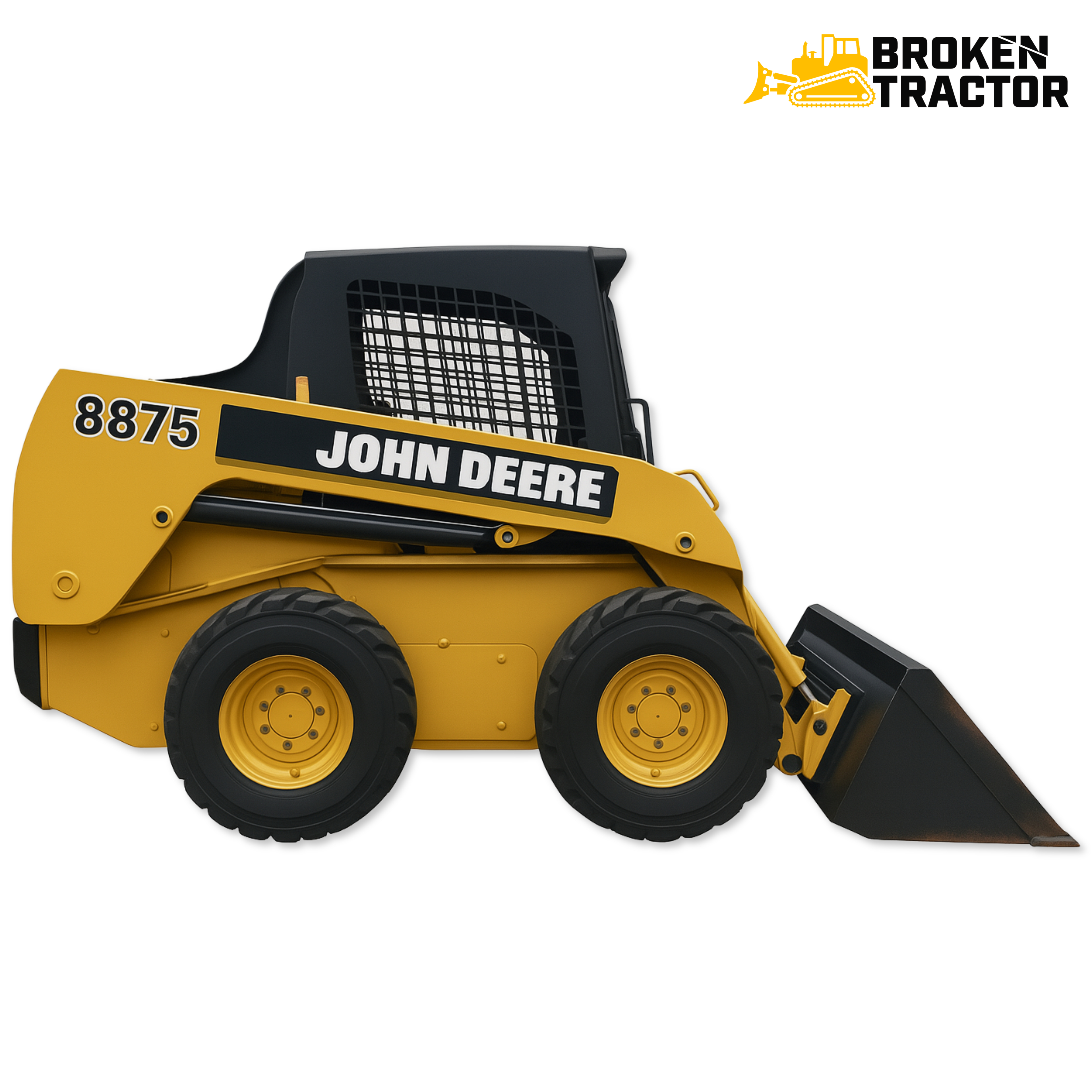

John Deere 8875 Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,004 lb
Max Speed12.1 mph
Fuel Capacity18.8 gal
Hydraulic System Fluid Capacity6.8 gal
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Fluid Capacity2.3 gal
Cooling System Fluid Capacity4.0 gal
Operating Speed12.1 mph

Engine

Engine specifications
Engine Model3029T
Displacement177 in³
Power Measured @2,100 rpm
Number of Cylinders3
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.6 gal/min
Relief Valve Pressure2,600 psi
Pump Type3 spool open-center

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab73 in
Wheelbase48 in
Width Over Tires70 in
Reach at Max Lift and Dump30 in
Length with Bucket143 in
Clearance at Max Lift and Dump97 in
Turning Radius from Center - inc bucket83 in
Turning Radius from Center - machine rear69 in
Length w/o Bucket113 in

Loader

Loader specifications
Operating Load Rating2,352 lb
Tipping Angle6,284 °
Breakout Force5,203 psi
