John Deere

990

Excavator

Operating Weight
88,300 lb
Net Power
260.0 hp
All excavators

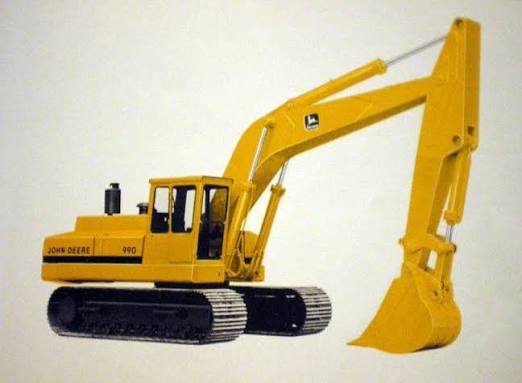

John Deere 990 Excavator
1 / 5
Image 1 of 5
Image: global-ce.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight88,300 lb
Fuel Capacity143.0 gal
Hydraulic Pump Flow Capacity55.0 gal/min
Hydraulic System Fluid Capacity220.0 gal
Hydraulic System Relief Valve Pressure2,700 psi
Cooling System Fluid Capacity16.0 gal
Operating Voltage24 V
Swing Drive Fluid Capacity9.3 gal
Alternator Supplied Amperage42 A

Engine

Engine specifications
Engine Model700 Series
Displacement955 in³
Power Measured @2,100 rpm
Net Power260.0 hp
AspirationTurbocharged
Torque Measured @1,300 rpm
Max Torque858 lb-ft

Dimensions

Dimensions specifications
Width to Outside of Tracks144 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Shipping Length of Unit476 in
Shipping Height of Unit144 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm
