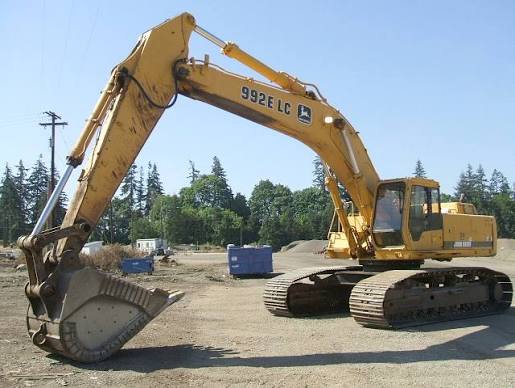

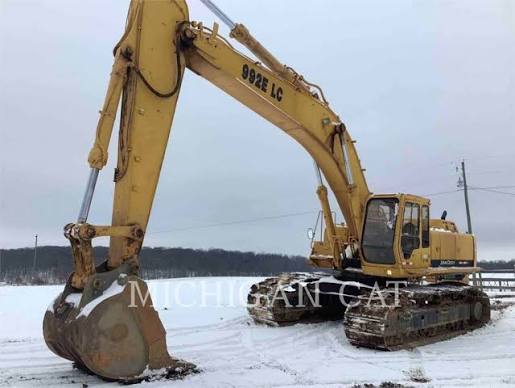

John Deere
992E LC
- Operating Weight
- 97,600 lb
- Max Digging Depth
- 287 in
- Max Digging Depth
- 325 in
- Net Power
- 285.0 hp
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight | 97,600 lb |
|---|---|
| Fuel Capacity | 156.0 gal |
| Hydraulic Pump Flow Capacity | 95.0 gal/min |
| Hydraulic System Fluid Capacity | 137.0 gal |
| Hydraulic System Relief Valve Pressure | 4,270 psi |
| Engine Oil Capacity | 9.0 gal |
| Cooling System Fluid Capacity | 10.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.5 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 6101A |
|---|---|
| Displacement | 619 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 296.0 hp |
| Net Power | 285.0 hp |
| Aspiration | Turbocharged and aftercooled |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 955 lb-ft |
Dimensions
| Ground Clearance | 30 in |
|---|---|
| Height - Top of Cab | 127 in |
| Length of Track on Ground | 176 in |
| Tail Swing Radius | 137 in |
| Width to Outside of Tracks | 144 in |
| Removal Counterweight Clearance | 54 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 114 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 30 in |
| Number of Shoes per Side | 53 |
| Number of Carrier Rollers per Side | 3 |
| Drawbar Pull | 79,590 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 287 in |
|---|---|
| Max Reach Along Ground | 441 in |
| Max Loading Height | 277 in |
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 404 in |
| Shipping Length of Unit | 468 in |
| Shipping Height of Unit | 143 in |
Bucket
| Reference Bucket Capacity | 2.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 4.20 yd³ |
| Minimum Bucket Capacity | 1.60 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 325 in |
|---|---|
| Max Vertical Wall Digging Depth | 277 in |
| Max Cutting Height | 441 in |
| Max Loading Height | 307 in |
| Max Reach Along Ground | 483 in |
| Shipping Length of Unit | 465 in |
| Shipping Height of Unit | 138 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 359 in |
|---|---|
| Max Cutting Height | 467 in |
| Max Loading Height | 346 in |
| Max Vertical Wall Digging Depth | 333 in |
| Max Reach Along Ground | 520 in |
| Shipping Length of Unit | 462 in |
| Shipping Height of Unit | 183 in |
