Jonyang

JY640

Excavator

Operating Weight
80,000 lb
Max Digging Depth
306 in
Net Power
315.2 hp
All excavators

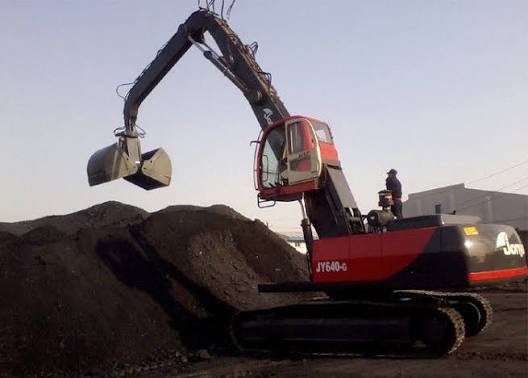

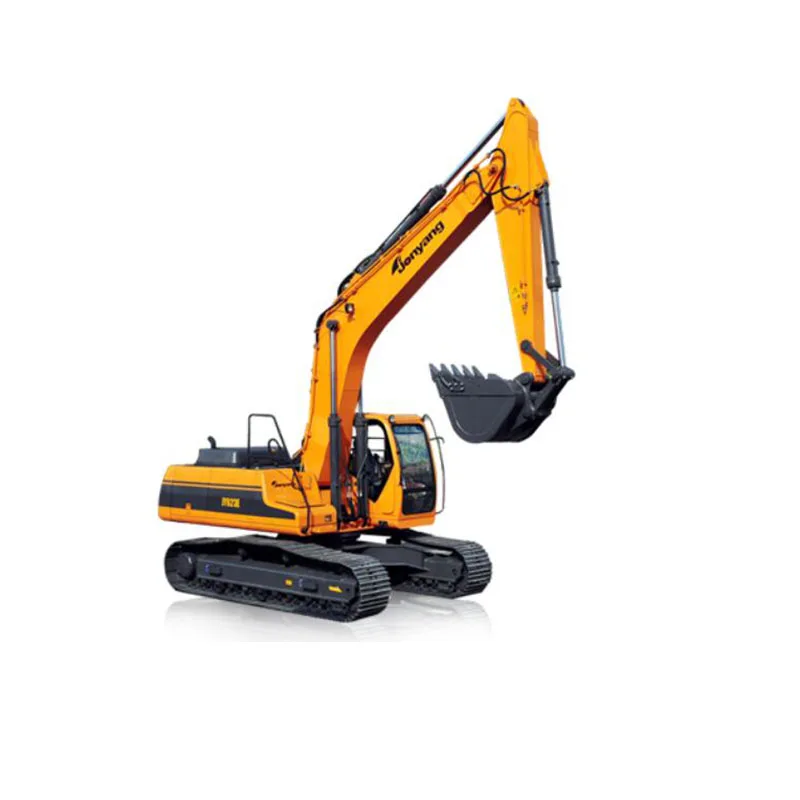

Jonyang JY640 Excavator
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight80,000 lb
Hydraulic Pump Flow Capacity190.3 gal/min
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelM11-C315
Net Power315.2 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab121 in
Length of Track on Ground167 in
Tail Swing Radius145 in
Width to Outside of Tracks132 in
Removal Counterweight Clearance52 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge109 in
Max Travel Speed4.0 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth306 in
Max Reach Along Ground476 in
Max Loading Height344 in
Max Cutting Height481 in
Shipping Length of Unit474 in
Shipping Height of Unit143 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
