Kato

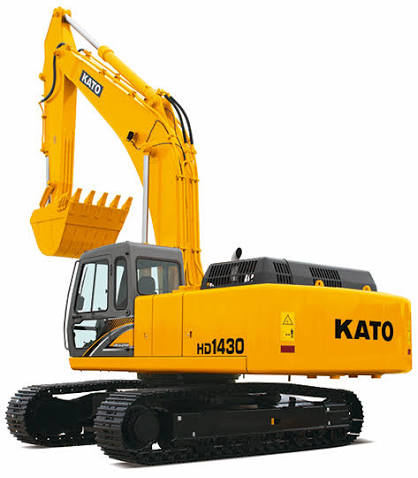

HD1430IIILC
- Operating Weight
- 68,564 lb
- Max Digging Depth
- 265 in
- Max Digging Depth
- 292 in
- Net Power
- 245.5 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 68,564 lb |
|---|---|
| Fuel Capacity | 153.3 gal |
| Hydraulic Pump Flow Capacity | 159.1 gal/min |
| Hydraulic System Fluid Capacity | 128.2 gal |
| Hydraulic System Relief Valve Pressure | 4,772 psi |
| Engine Oil Capacity | 8.5 gal |
| Cooling System Fluid Capacity | 9.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.0 gal |
| Alternator Supplied Amperage | 35 A |
Engine
| Engine Model | C 6D16-TLE2A |
|---|---|
| Displacement | 460 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 245.5 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 613 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 120 in |
| Tail Swing Radius | 137 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 46 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 103 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 265 in |
|---|---|
| Max Loading Height | 281 in |
| Max Vertical Wall Digging Depth | 227 in |
| Max Cutting Height | 400 in |
Bucket
| Reference Bucket Capacity | 1.90 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.39 yd³ |
| Minimum Bucket Capacity | 0.99 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 292 in |
|---|---|
| Max Vertical Wall Digging Depth | 259 in |
| Max Cutting Height | 407 in |
| Max Loading Height | 287 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 331 in |
|---|---|
| Max Cutting Height | 419 in |
| Max Loading Height | 299 in |
| Max Vertical Wall Digging Depth | 295 in |
