Kato
Kobelco
SK350LC-10 H&W
Excavator
35 specifications
1 / 5

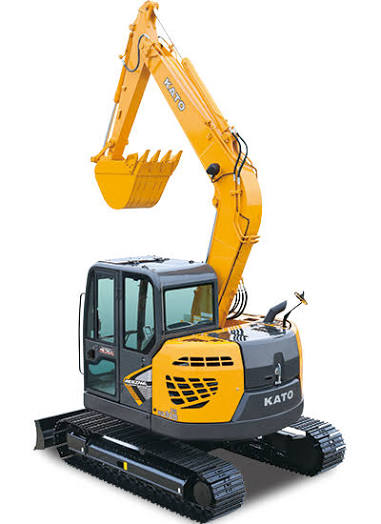

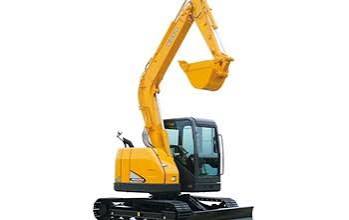

Image 1 of 5
Specifications
62 data points
Operating Specifications
| Operating Weight | 95,901 lb |
|---|---|
| Fuel Capacity | 145.3 gal |
| Hydraulic Pump Flow Capacity | 190.3 gal/min |
| Hydraulic System Fluid Capacity | 171.8 gal |
| Hydraulic System Relief Valve Pressure | 4,050 psi |
| Engine Oil Capacity | 7.7 gal |
| Cooling System Fluid Capacity | 16.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 5.9 gal |
| Alternator Supplied Amperage | 30 A |
Engine
| Engine Model | 6D22-TC |
|---|---|
| Displacement | 680 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 286.0 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 846 lb-ft |
Dimensions
| Ground Clearance | 28 in |
|---|---|
| Height - Top of Cab | 130 in |
| Length of Track on Ground | 168 in |
| Tail Swing Radius | 152 in |
| Width to Outside of Tracks | 122 in |
| Removal Counterweight Clearance | 53 in |
Undercarriage
| Ground Pressure | 11 psi |
|---|---|
| Track Gauge | 100 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.0 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 71,600 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 287 in |
|---|---|
| Max Reach Along Ground | 452 in |
| Max Loading Height | 319 in |
| Max Vertical Wall Digging Depth | 250 in |
| Max Cutting Height | 451 in |
| Shipping Length of Unit | 478 in |
| Shipping Height of Unit | 137 in |
Bucket
| Reference Bucket Capacity | 2.69 yd³ |
|---|---|
| Maximum Bucket Capacity | 3.10 yd³ |
| Minimum Bucket Capacity | 1.80 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 306 in |
|---|---|
| Max Vertical Wall Digging Depth | 269 in |
| Max Cutting Height | 461 in |
| Max Loading Height | 328 in |
| Max Reach Along Ground | 472 in |
| Shipping Length of Unit | 478 in |
| Shipping Height of Unit | 137 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 325 in |
|---|---|
| Max Cutting Height | 469 in |
| Max Loading Height | 336 in |
| Max Vertical Wall Digging Depth | 287 in |
| Max Reach Along Ground | 490 in |
| Shipping Length of Unit | 478 in |
| Shipping Height of Unit | 137 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 365 in |
|---|---|
| Max Cutting Height | 486 in |
| Max Reach Along Ground | 527 in |
| Max Loading Height | 353 in |
| Max Vertical Wall Dig Depth | 325 in |
| Shipping Length of Unit | 478 in |

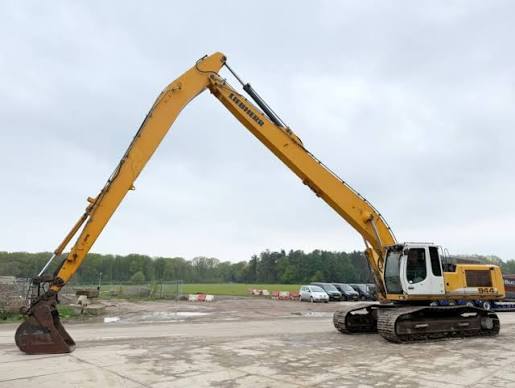

Comparable machines
