Kawasaki

115ZV-2

Wheel Loader

Operating Weight
102,710 lb
Bucket Capacity - heaped
8.50 yd³
Gross Power
506.0 hp
Net Power
463.0 hp
All wheel loaders

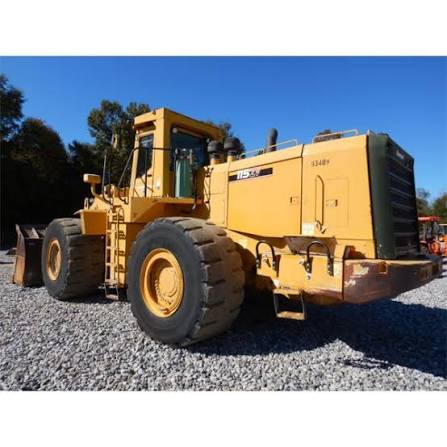

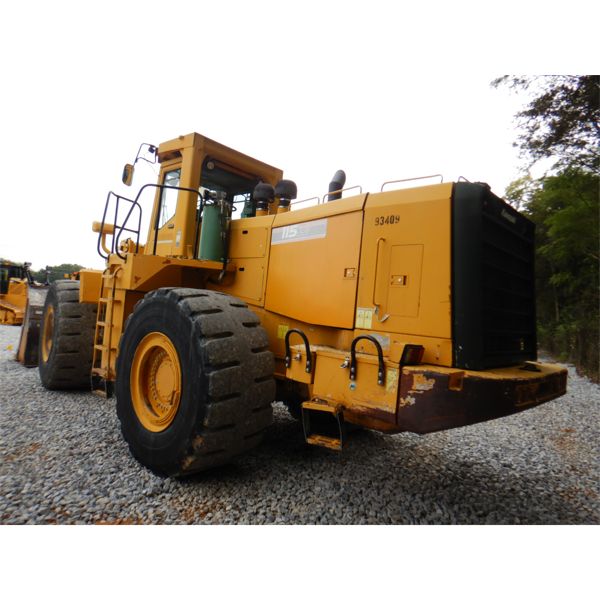

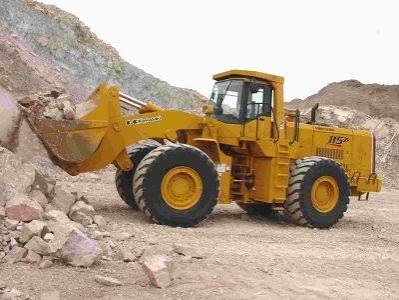

Kawasaki 115ZV-2 Wheel Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight102,710 lb
Fuel Capacity174.4 gal
Tire Size35/65-33-VSDL (L-5)
Hydraulic System Fluid Capacity125.5 gal
Static Tipping Weight71,960 lb
Operating Voltage24 V
Turning Radius330 in
Engine Oil Fluid Capacity16.2 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage75 A
Front Axle/Diff Fluid Capacity47.6 gal
Rear Axle/Diff Fluid Capacity47.6 gal
Cooling System Fluid Capacity38.4 gal
Transmission Fluid Capacity23.8 gal
Rated Bucket Capacity8.31 yd³

Engine

Engine specifications
Engine ModelQSK19
Displacement1,159 in³
Power Measured @1,800 rpm
Gross Power506.0 hp
Net Power463.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,300 rpm
MakeCummins

Weights

Weights specifications
Operating Weight104,450 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity61.0 gal/min
Raise Time8.4 s
Lower Time5.0 s
Dump Time1.7 s
Relief Valve Setting3,000 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab163 in
Wheelbase165 in
Width Over Tires141 in
Reach at Max Lift and Dump67 in
Length with Bucket on Ground428 in
Hinge Pin - Max Height198 in

Transmission

Transmission specifications
Max Speed - Forward22.4 mph
Max Speed - Reverse4.7 mph
Transmission Typefull powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped8.50 yd³
Bucket Capacity - struck7.49 yd³
Breakout Force86,900 lb
Bucket Width149 in
