Kobelco
New Holland
E200SR
Excavator
44 specifications

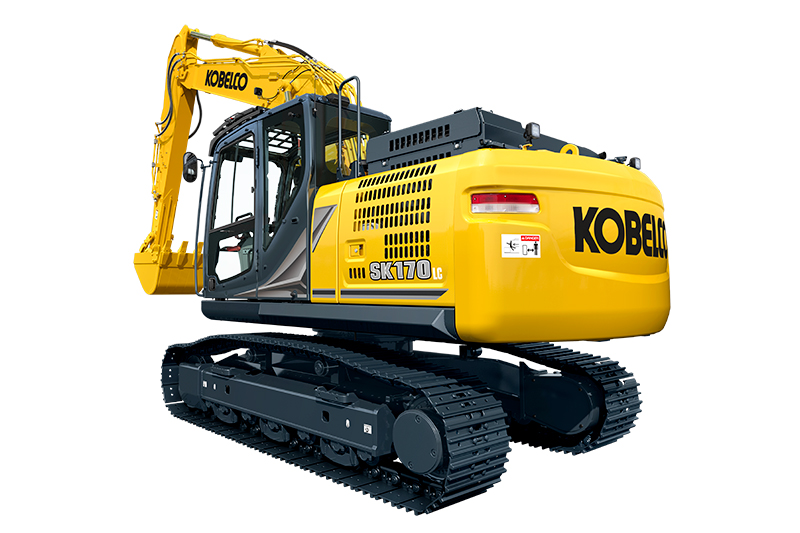

Kobelco
SK170 LC
- Operating Weight
- 37,800 lb
- Max Digging Depth
- 257 in
- Max Digging Depth
- 238 in
- Net Power
- 121.0 hp
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 37,800 lb |
|---|---|
| Fuel Capacity | 68.7 gal |
| Hydraulic Pump Flow Capacity | 81.2 gal/min |
| Hydraulic System Fluid Capacity | 64.8 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 3.9 gal |
| Cooling System Fluid Capacity | 4.3 gal |
Engine
| Engine Model | F4GE9484D*J6 |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 121.0 hp |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 130 in |
| Tail Swing Radius | 100 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 40 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 24 in |
| Drawbar Pull | 38,555 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 257 in |
|---|---|
| Max Reach Along Ground | 367 in |
| Max Loading Height | 275 in |
| Max Vertical Wall Digging Depth | 217 in |
| Max Cutting Height | 379 in |
| Shipping Length of Unit | 342 in |
| Shipping Height of Unit | 119 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.40 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 238 in |
|---|---|
| Max Vertical Wall Digging Depth | 196 in |
| Max Cutting Height | 365 in |
| Max Loading Height | 261 in |
| Max Reach Along Ground | 347 in |
| Shipping Length of Unit | 342 in |
| Shipping Height of Unit | 119 in |
