Kobelco

SK230SRLC-3

Excavator

Operating Weight
130,734 lb
Net Power
157.0 hp
All excavators

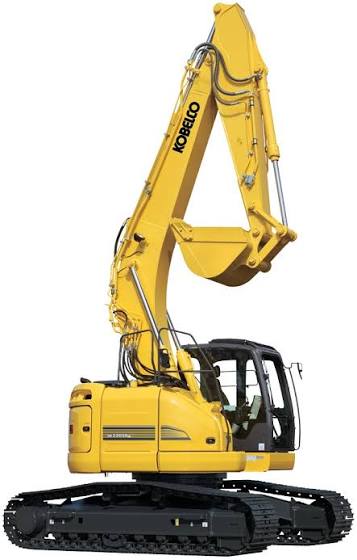

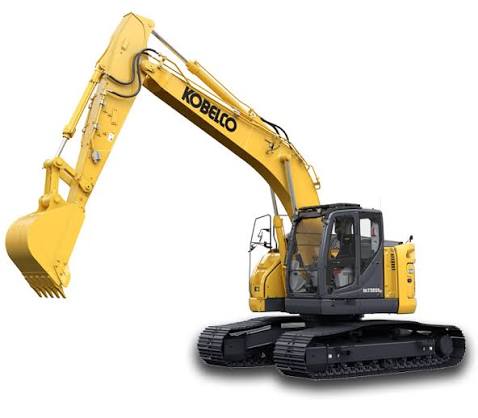

Kobelco SK230SRLC-3 Excavator
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight130,734 lb
Fuel Capacity87.2 gal
Hydraulic System Fluid Capacity60.8 gal
Hydraulic System Relief Valve Pressure4,970 psi
Engine Oil Capacity5.5 gal
Cooling System Fluid Capacity6.4 gal

Engine

Engine specifications
Displacement313 in³
Power Measured @2,000 rpm
Net Power157.0 hp
Max Torque472 lb-ft
Stroke5 in
Bore5 in
Engine TypeDirect injection water-cooled 4-cycle diesel engine With turbocharger intercooler (Complies with EU (NRMM) Stage III B US EPA Interim Tier IV and act on regulation etc. of emission from non-road special motor vehicles

Dimensions

Dimensions specifications
Ground Clearance210 in
Height - Top of Cab125 in
Tail Swing Radius72 in
Gradeability70.0 %
Overall width -Upper Structure109 in

Undercarriage

Undercarriage specifications
Track Gauge85 in
Max Travel Speed3.8 mph
Number of Shoes per Side49
Drawbar Pull51,000 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Minimum swing radius0 in
Max Digging Reach1 in
Max Digging Reach on Ground1 in
Bucket Digging Force - SAE180 lb
Max Dumping Clearance1 in
Min Dumping Clearance1 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
