Kobelco

SK300LC-10

Excavator

Operating Weight
68,100 lb
Max Digging Depth
284 in
Max Digging Depth
320 in
Net Power
252.2 hp
All excavators

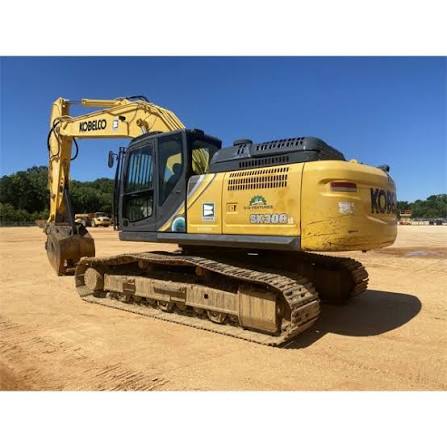

Kobelco SK300LC-10 Excavator
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight68,100 lb

Engine

Engine specifications
Engine ModelHINO J08EVV-KSDP
Displacement469 in³
Power Measured @2,100 rpm
Net Power252.2 hp
Torque Measured @1,600 rpm
Max Torque729 lb-ft
Stroke5 in
Bore5 in
Engine TypeWater-cooled
Emission Tier LevelEPA Tier IV Final

Weights

Weights specifications
Operating Weight67,902 lb

Hydraulic System

Hydraulic System specifications
Pump TypeTwo variable displacement pumps + One gear pump
Boom cylinder6 in
Bucket cylinder6 in

Dimensions

Dimensions specifications
Ground Clearance20 in
Overall Length422 in
Tail Swing Radius131 in
Track Gauge102 in
Overall width -Upper Structure124 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.2 mph

Fluid Capacities

Fluid Capacities specifications
Fuel Tank132.9 gal
Hydraulic system64.8 gal
Engine Oil7.6 gal
Cooling system9.3 gal
Diesel exhaust fluid (DEF) tank22.0 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth284 in
Max Reach Along Ground428 in
Max Vertical Wall Digging Depth246 in
Max Digging Reach430 in
Max Digging Reach on Ground420 in
Bucket Digging Force - SAE37,318 lb
Max Digging Height385 in
Bucket Digging Force - ISO42,264 lb
Max Dumping Clearance281 in
Min Dumping Clearance102 in
Arm Crowd Force - SAE27,427 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
Swing radius131 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth320 in
Max Vertical Wall Digging Depth280 in
Max Digging Reach462 in
Max Digging Reach on Ground445 in
Max Dumping Clearance299 in
Min Dumping Clearance67 in
