Kobelco

SK330 LC

Excavator

Operating Weight
80,300 lb
Max Digging Depth
284 in
Net Power
238.0 hp
All excavators

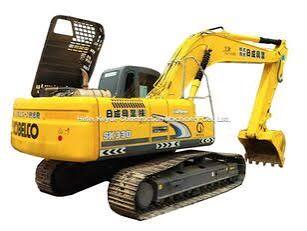

Kobelco SK330 LC Excavator
1 / 5
Image 1 of 5
Image: kobelco.com.au

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight80,300 lb
Fuel Capacity76.7 gal
Hydraulic Pump Flow Capacity139.8 gal/min
Hydraulic System Fluid Capacity92.8 gal
Hydraulic System Relief Valve Pressure3,990 psi

Engine

Engine specifications
Engine Model6D16-TLEB
Displacement460 in³
Power Measured @2,200 rpm
Gross Power247.0 hp
Net Power238.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab124 in
Length of Track on Ground159 in
Tail Swing Radius138 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance59 in

Undercarriage

Undercarriage specifications
Ground Pressure5,470 psi
Track Gauge118 in
Max Travel Speed3.7 mph
Shoe Size32 in
Drawbar Pull63,800 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth284 in
Max Reach Along Ground433 in
Max Loading Height299 in
Max Vertical Wall Digging Depth248 in
Max Cutting Height425 in
Shipping Length of Unit442 in
Shipping Height of Unit134 in

Bucket

Bucket specifications
Reference Bucket Capacity1.90 yd³
Maximum Bucket Capacity2.39 yd³
Minimum Bucket Capacity0.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
